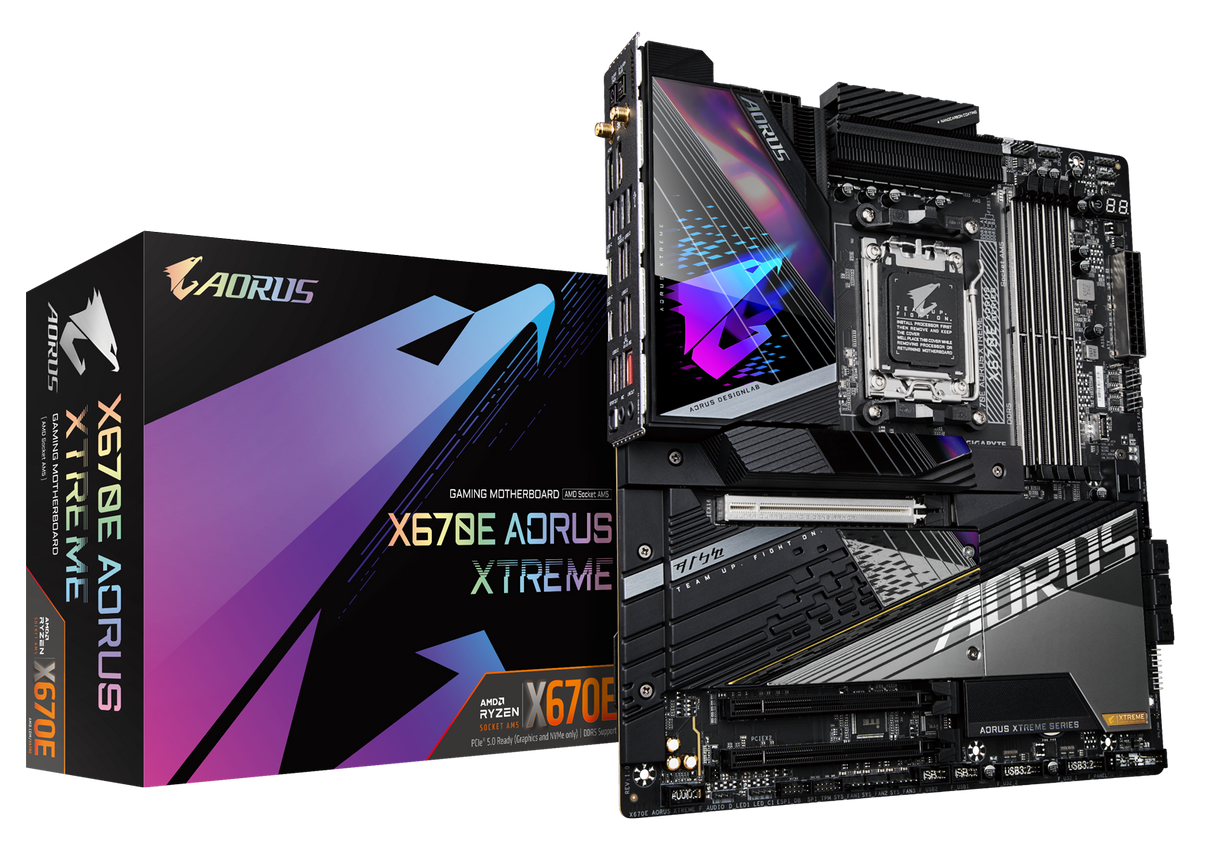

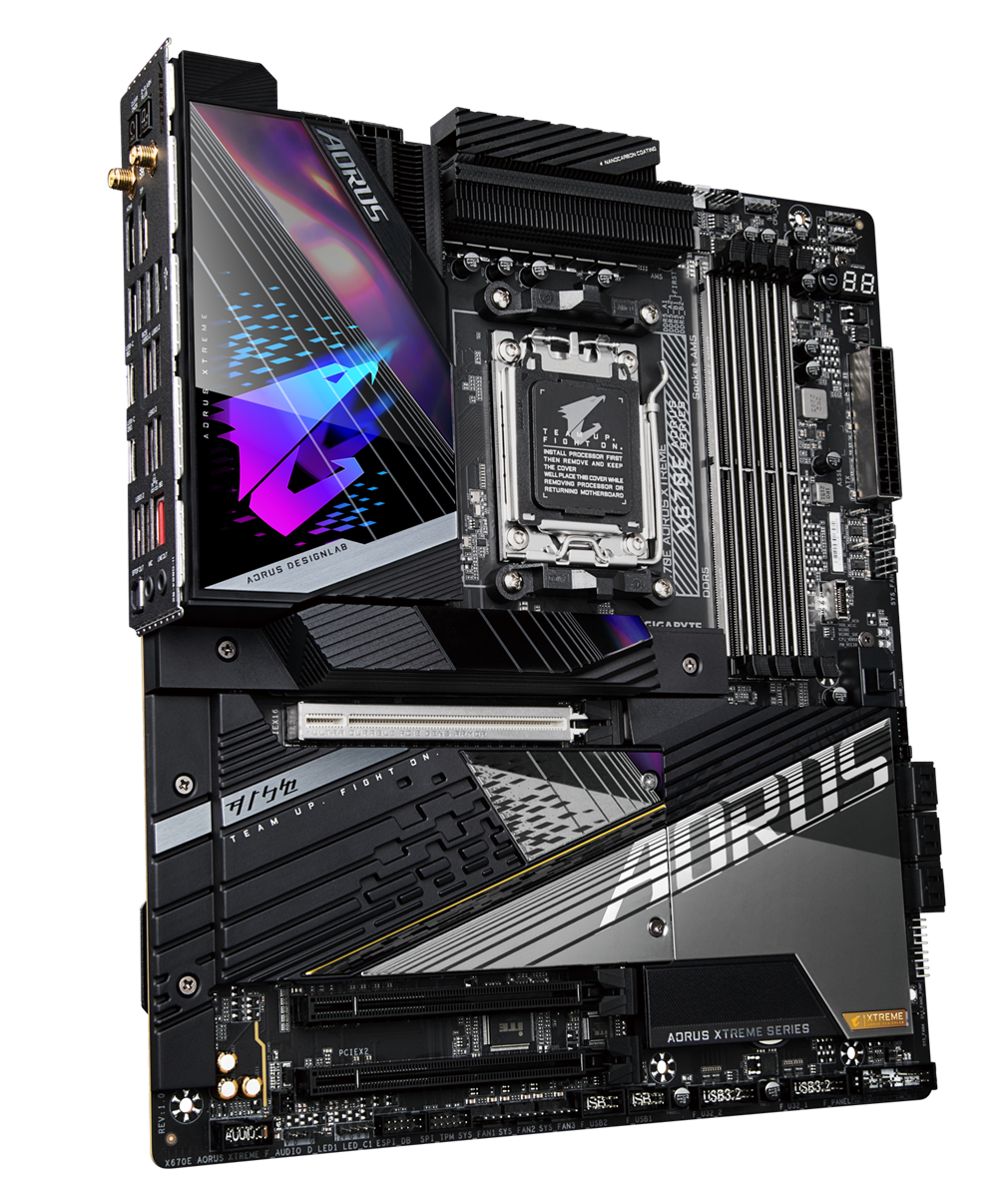

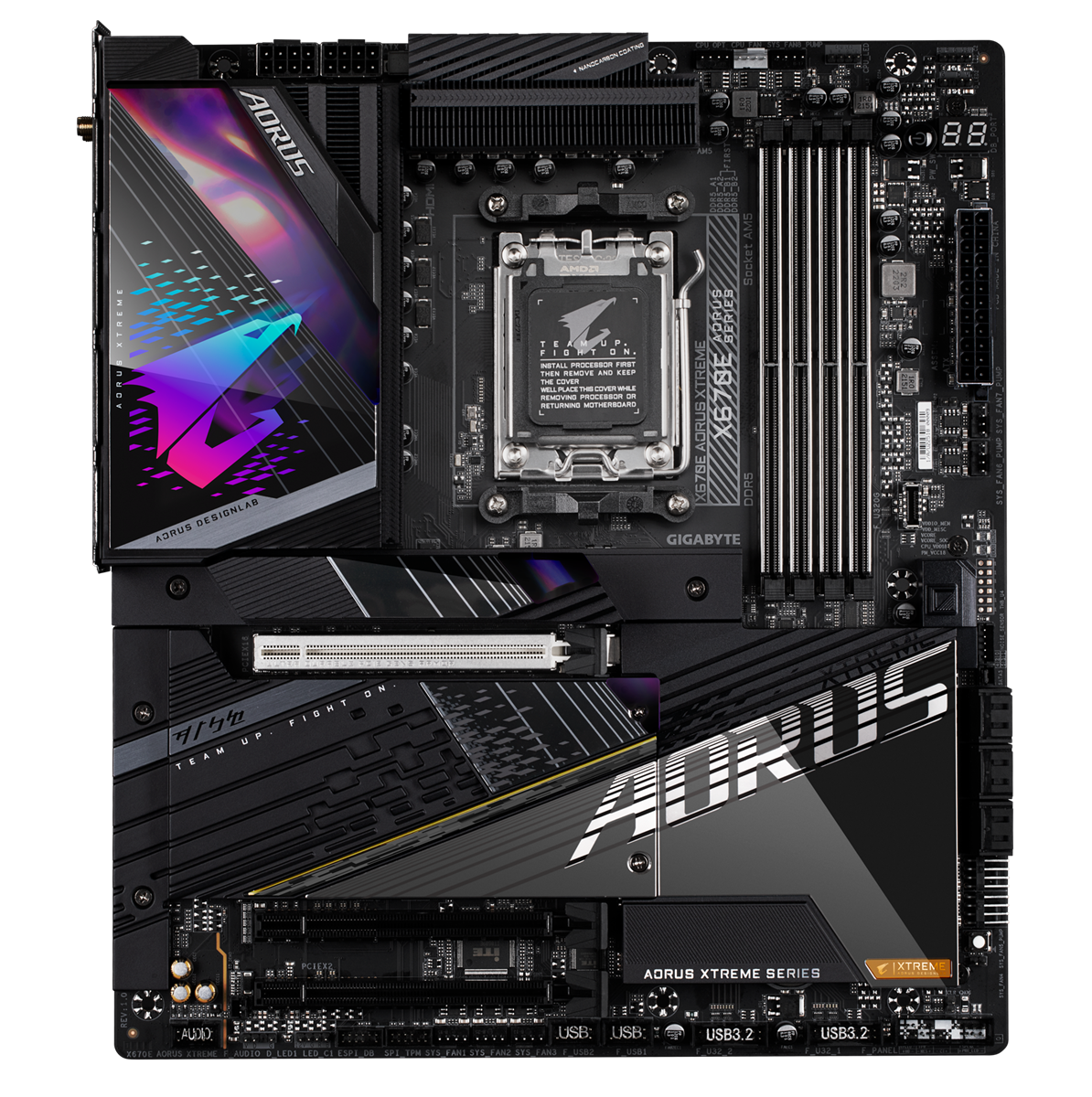

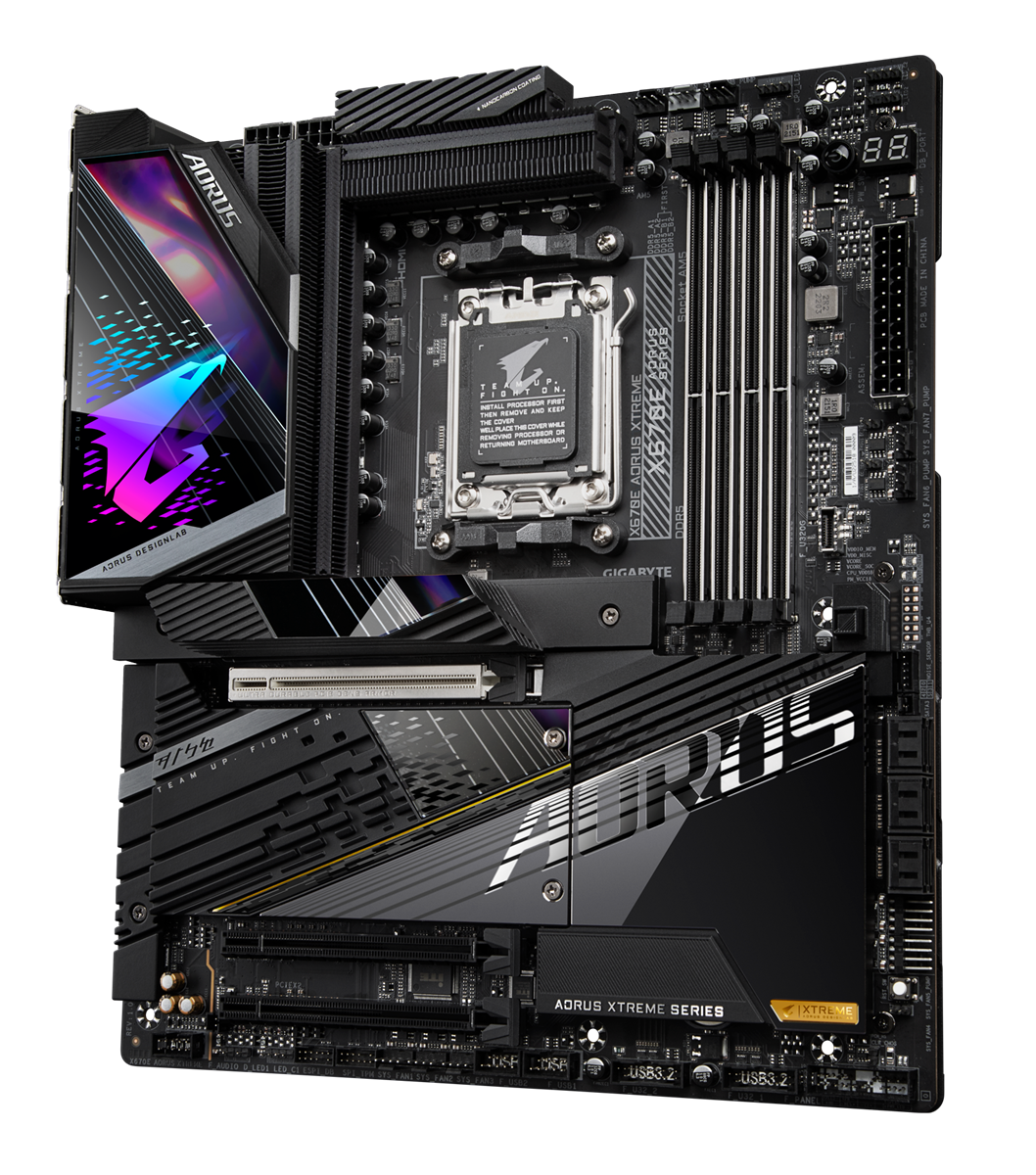

Gigabyte X670E AORUS XTREME

Gigabyte | Bundkort

Pris:
Tilbudspris7.369 DKK
Lagerstatus

Billigst på PriceRunner

Beskrivelse

Key Feature

  • AMD Socket AM5 : Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance : Direct 18+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5 : 4*SMD DIMMs with EXPO & XMP Memory Module Support
  • Next Generation Storage : 4*PCIe 5.0 x4 M.2 Connectors
  • Fins-Array III & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch Plus : SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Hi-Fi Audio with DTS : X® Ultra : ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC with Front ESSential USB DAC Bundled
  • Fast Networks : Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax
  • Extended Connectivity : DP, HDMI, USB-C® 10Gbps, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Generelt

CPU-Socket
AMD AM5
Chipset
AMD X670E
Form factor
EATX

Hukommelse

Memory Type
DDR5
Kanal understøttet
Dual Channel
Memory frequency (base)
5.200 MHz
Memory frequency (OC)
6.600 MHz
Memory slots
4 pcs.
Max Memory
128 GB

Expansion Slots

PCIe generation
5.0
PCIe x16
1 pcs.
PCIe x1
2 pcs.

Lagerenheder

M.2 slots
4 pcs.
SATA ports
6 pcs.

Kommunikation

WiFi
Ja
WiFi Standard
Intel® Wi-Fi 6E AX210
Bluetooth
Ja
Bluetooth standard
5.3

Internal I/O Connectors

TPM
Ja

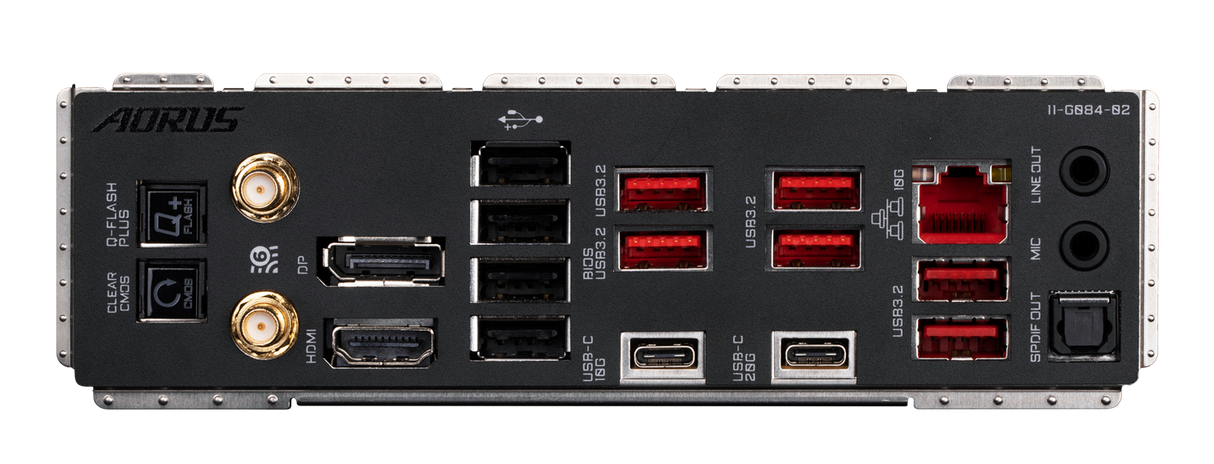

Rear Panel Ports

USB type-A
Ja
USB type-C
Ja
HDMI
Ja
DisplayPort
Ja

Dimensioner og vægt

Bredde
305 mm
Længde
269 mm
