Beskrivelse
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.
A cleaner look

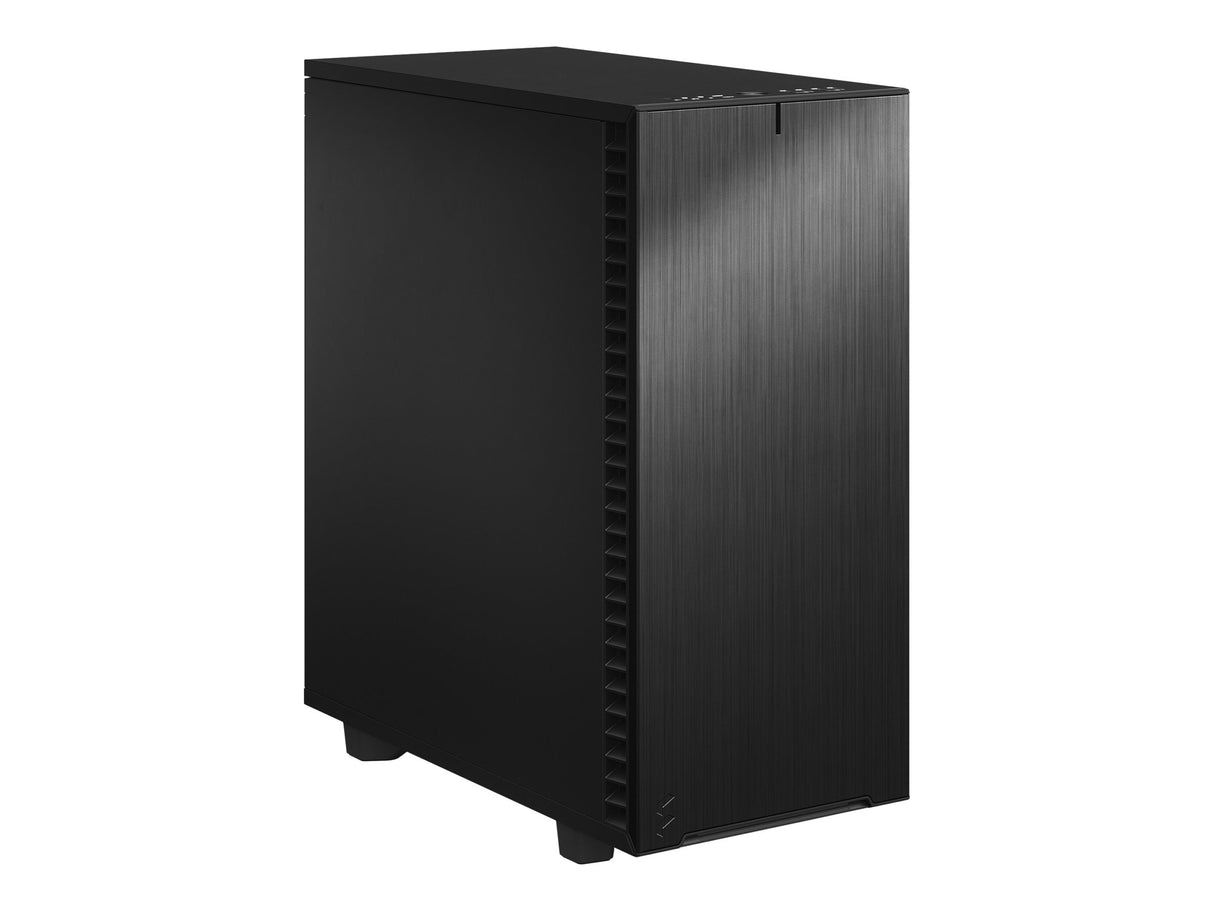

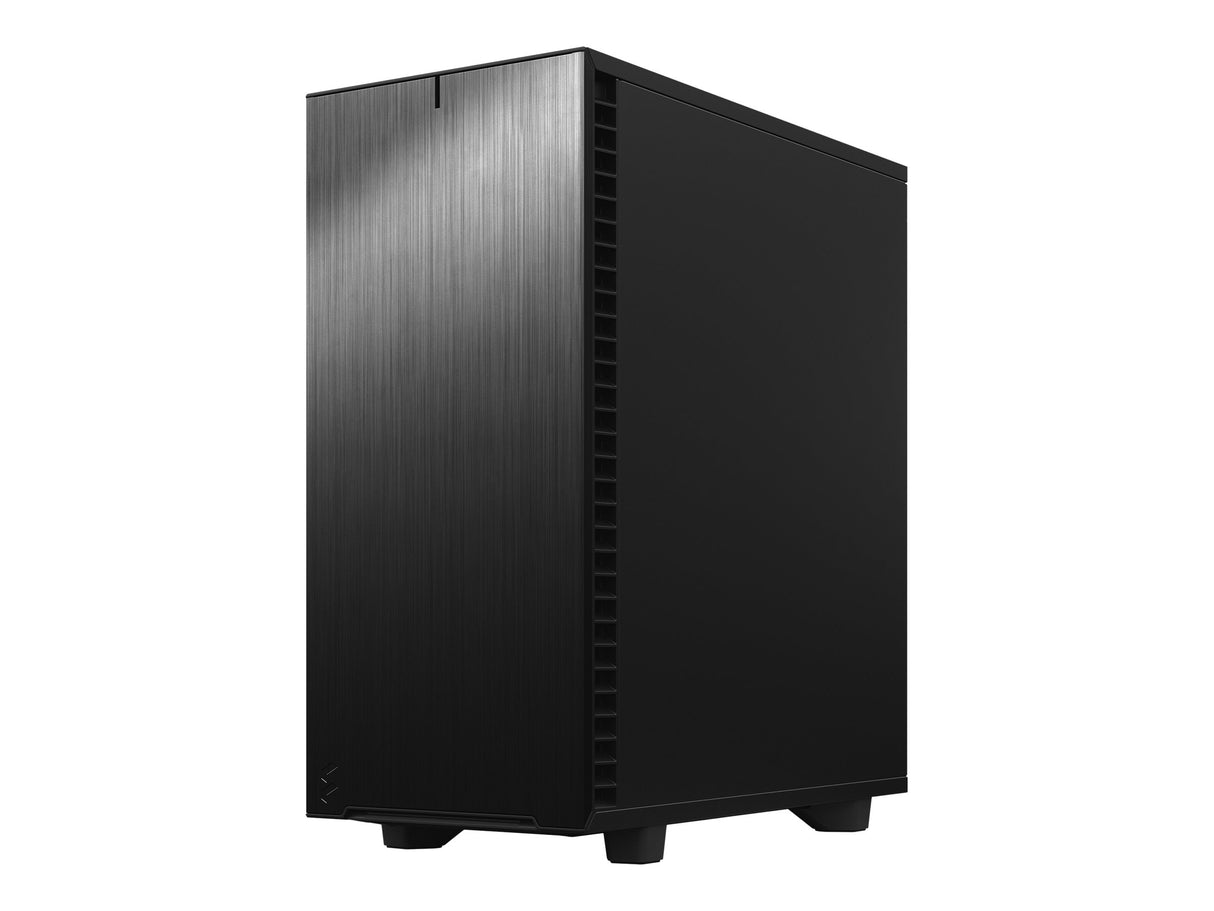

Brushed aluminum front and interchangeable side panels give a very clean look
Compact yet spacious

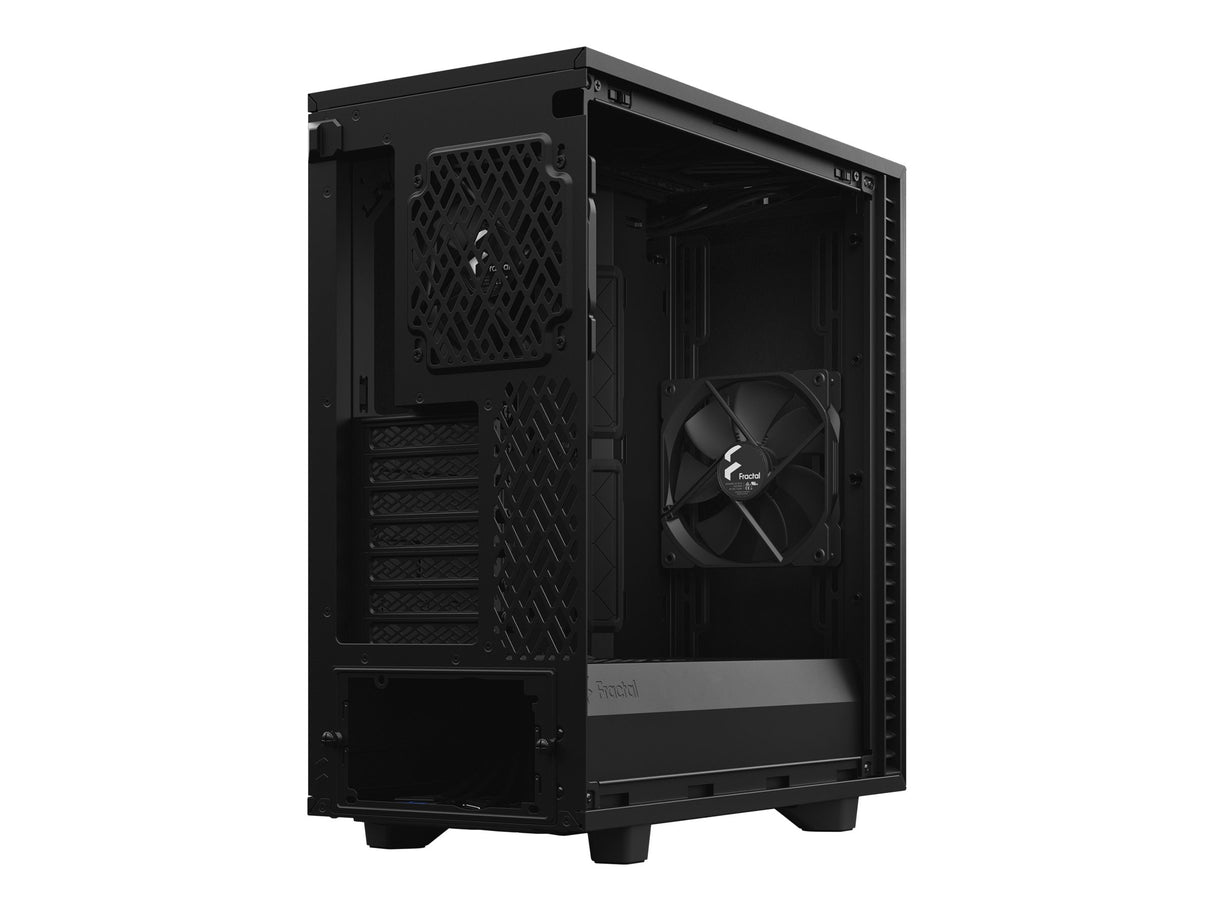

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

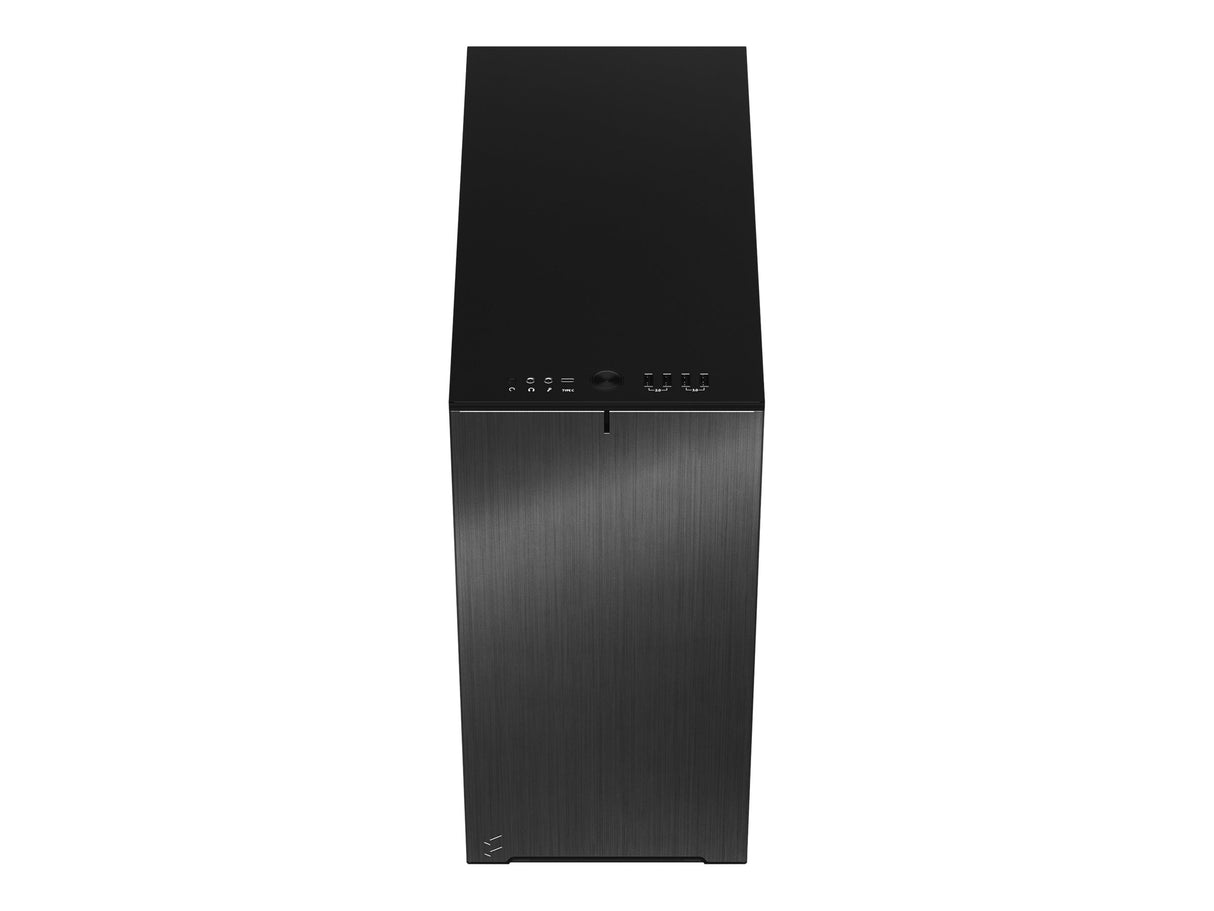

Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

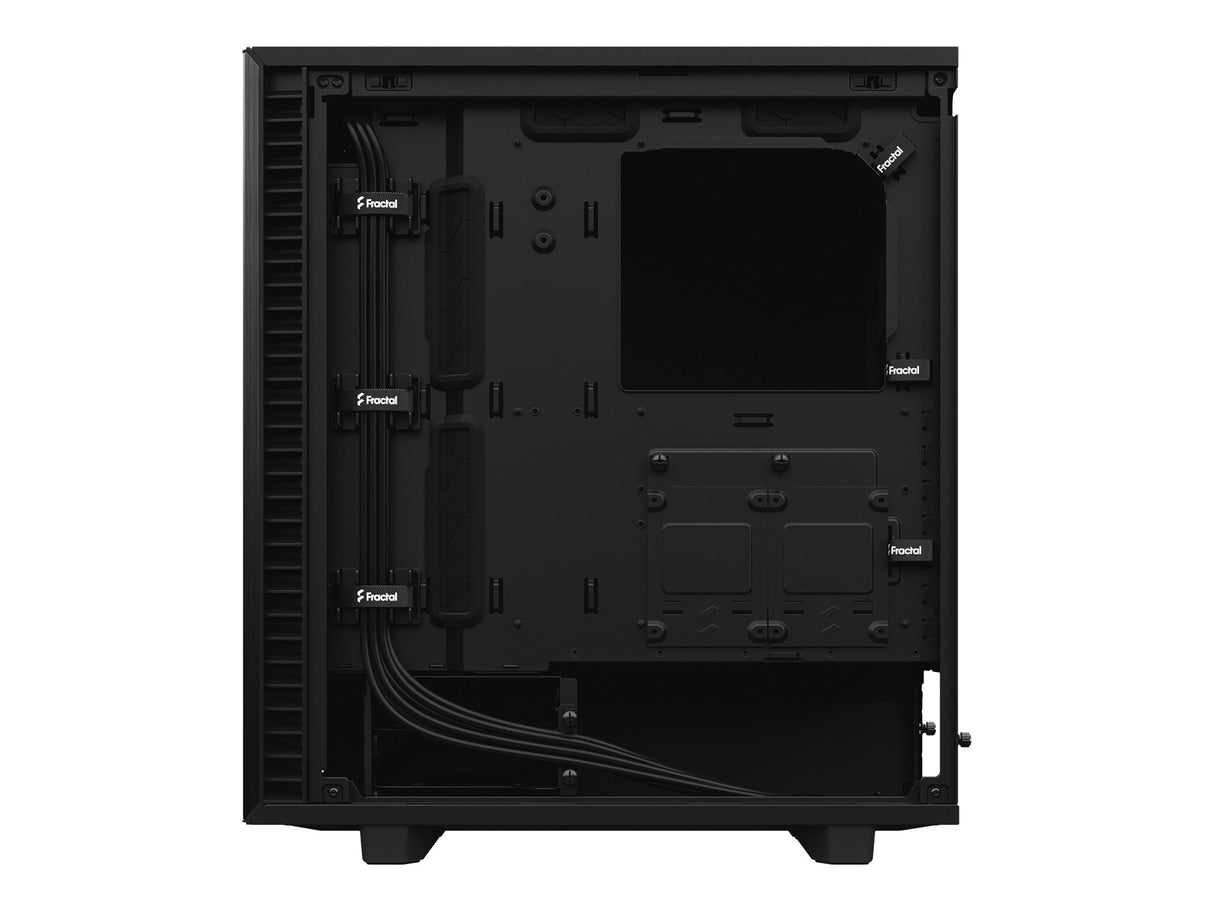

Concealed storage

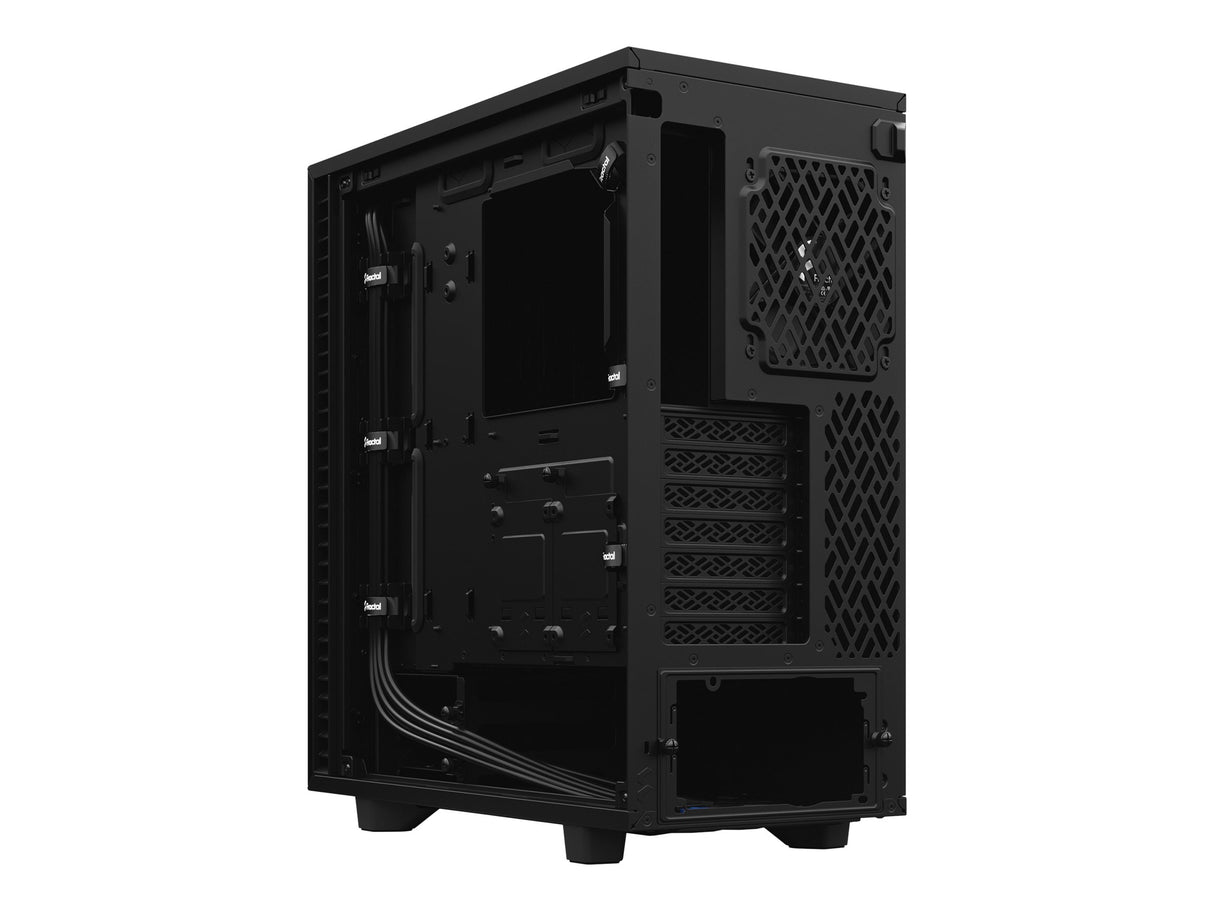

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.
Open access

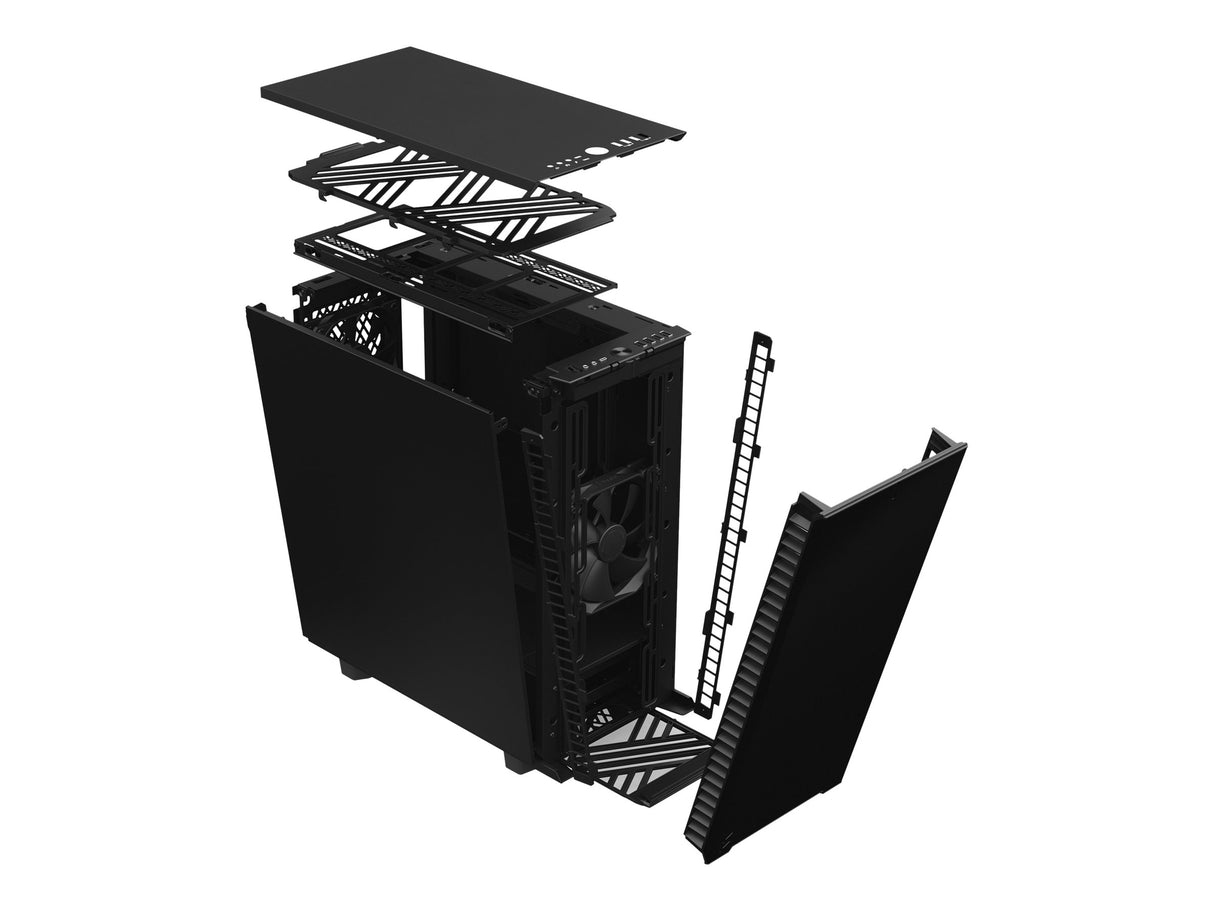

Remove the entire top to build and route with zero hindrance
Generelt | |
---|---|
Model | Tower |
Max størrelse på bundkort | ATX |
Understøttede motherboards | ATX, microATX, Mini-ITX |
Antal interne bays | 8 |
Farve | Ensfarvet sort |
Kølesystem | Front: 140 mm ventilator x 1 Top: 120/140 mm blæserstativ x 2 Bagside: 120 mm ventilator x 1 Nederst: 120 mm blæserstativ x 1 Front: 140 mm blæserstativ x 2 / 2 x 140 mm blæser eller 3 x 120 mm blæser-understøttet |
Maks. længde for videokort | 341 mm |
Strømforsyning maks. længde | 200 mm |
Egenskaber, systemkabinet | Top panel støvfilter, front støvfilter, kabeladministrations-system, understøtter 240 mm radiator i toppen, understøtter 120 mm radiator bagtil, understøtter 120 mm radiator i bunden, støvfilter i bunden, understøtter 280/360 mm radiator i frontpanel |
Ekspansion / Konnektivitet | |
Udvidelses-båse | 2 (total) / 2 (fri) x intern - 2,5" / 3,5" delt 2 (total) / 2 (fri) x intern - 2.5" |
Ekspansionsåbninger | 7 |
Interface | 2 x USB 2.0 2 x USB 3.0 1 x hovedtelefoner - mini-jack 1 x mikrofon - mini-jack 1 x USB 3.1 Gen 2 - USB-C |
Effekt | |
Strømenhed | Ingen strømforsyning |
Specifikationsoverensstemmelse | ATX |
Mål og vægt | |
Bredde | 21 cm |
Dybde | 42.7 cm |
Højde | 47.4 cm |
Vægt | 8.61 kg |
Mål & vægt (forsendelse) | |
Bredde ved forsendelse | 31 cm |
Dybde ved forsendelse | 53.6 cm |
Højde ved forsendelse | 52.1 cm |
Vægt ved forsendelse | 10.87 kg |
