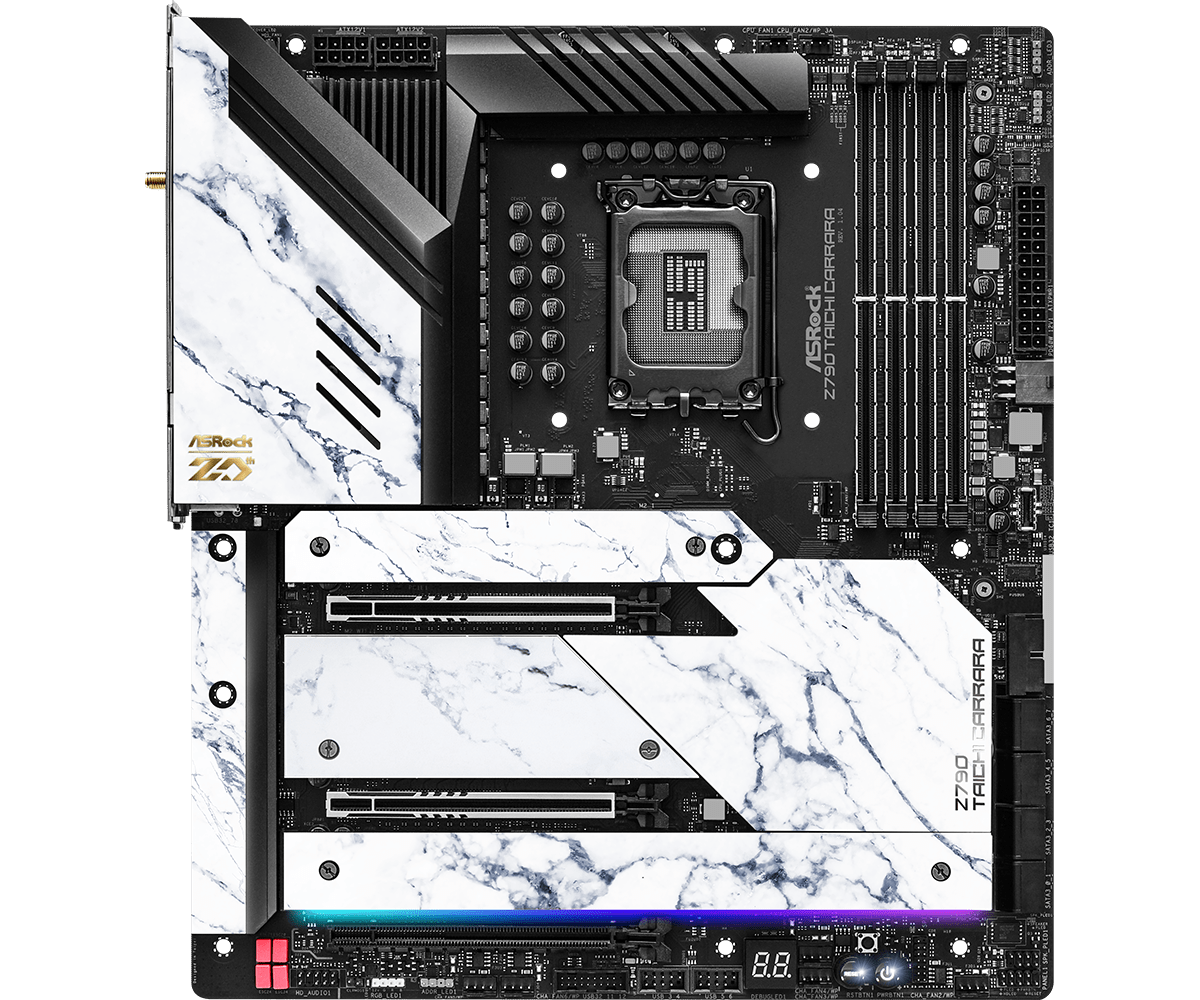

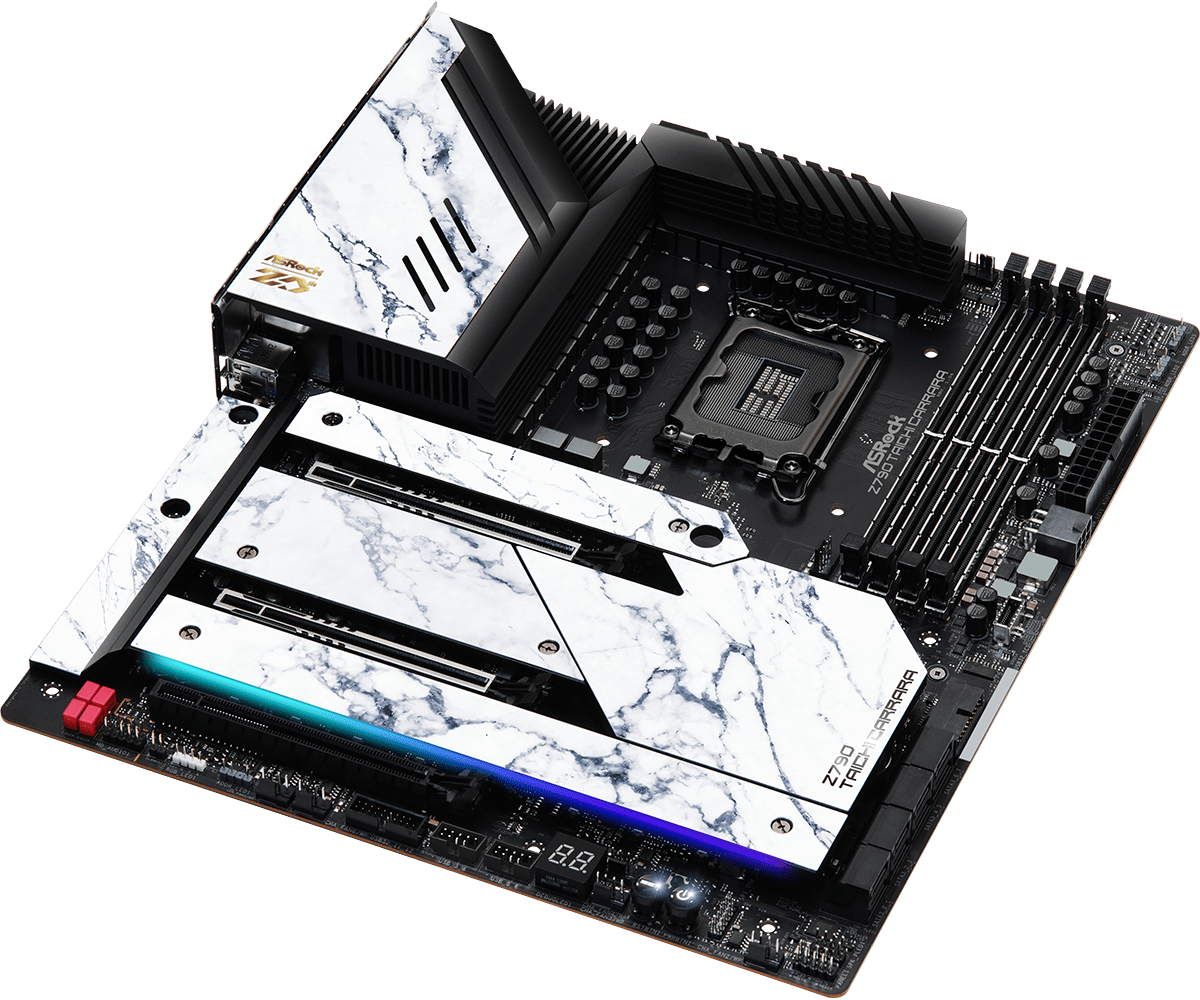

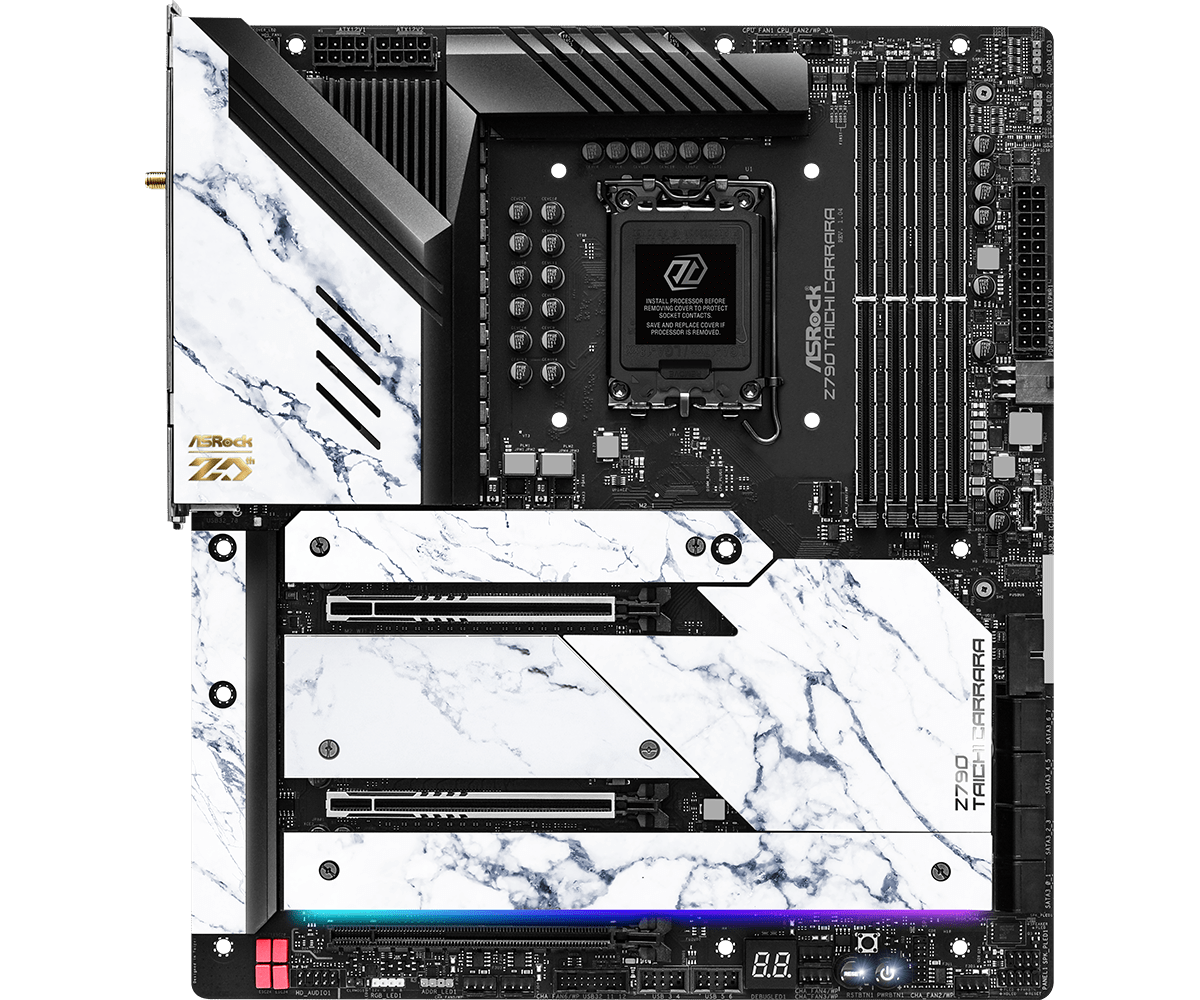

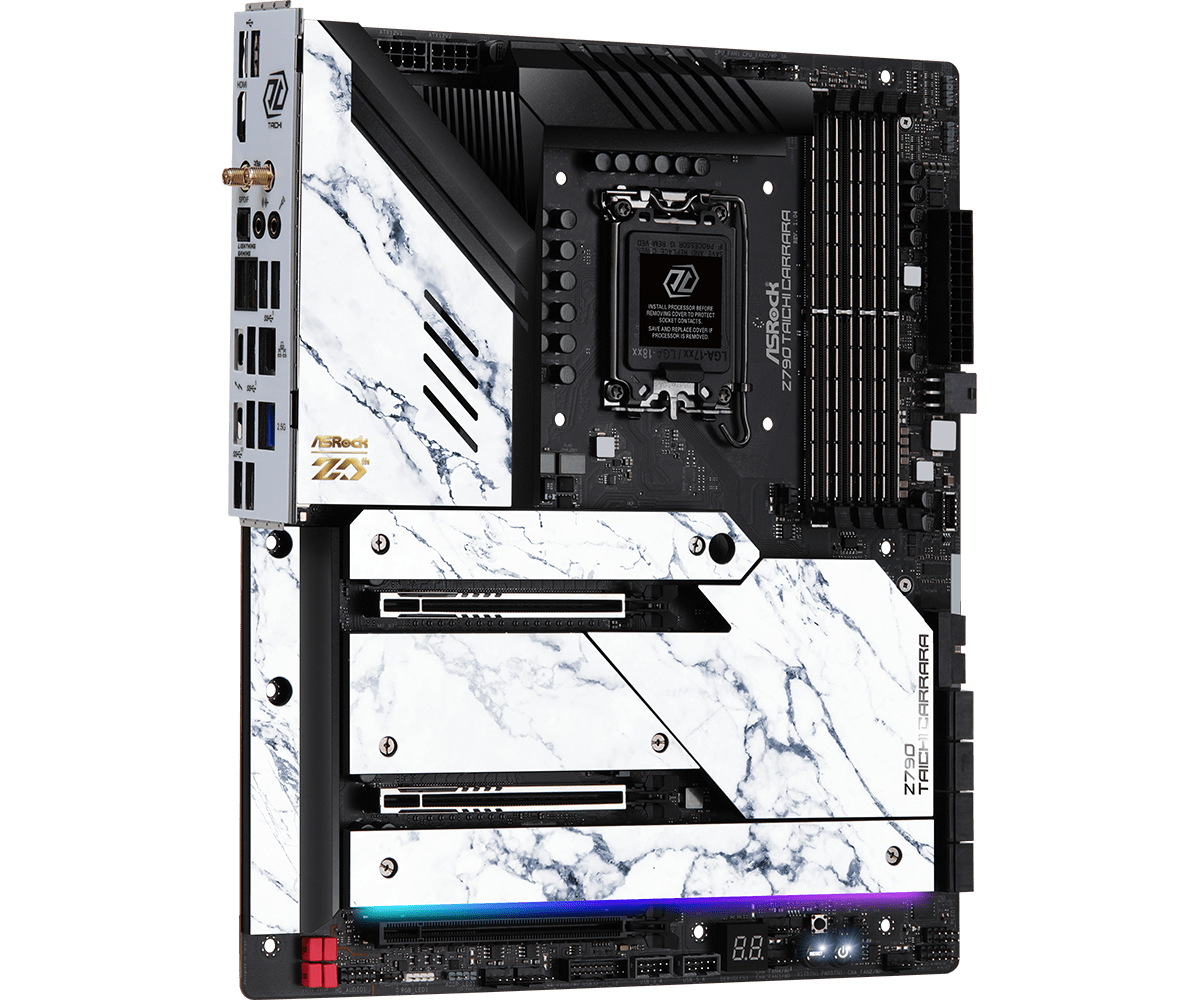

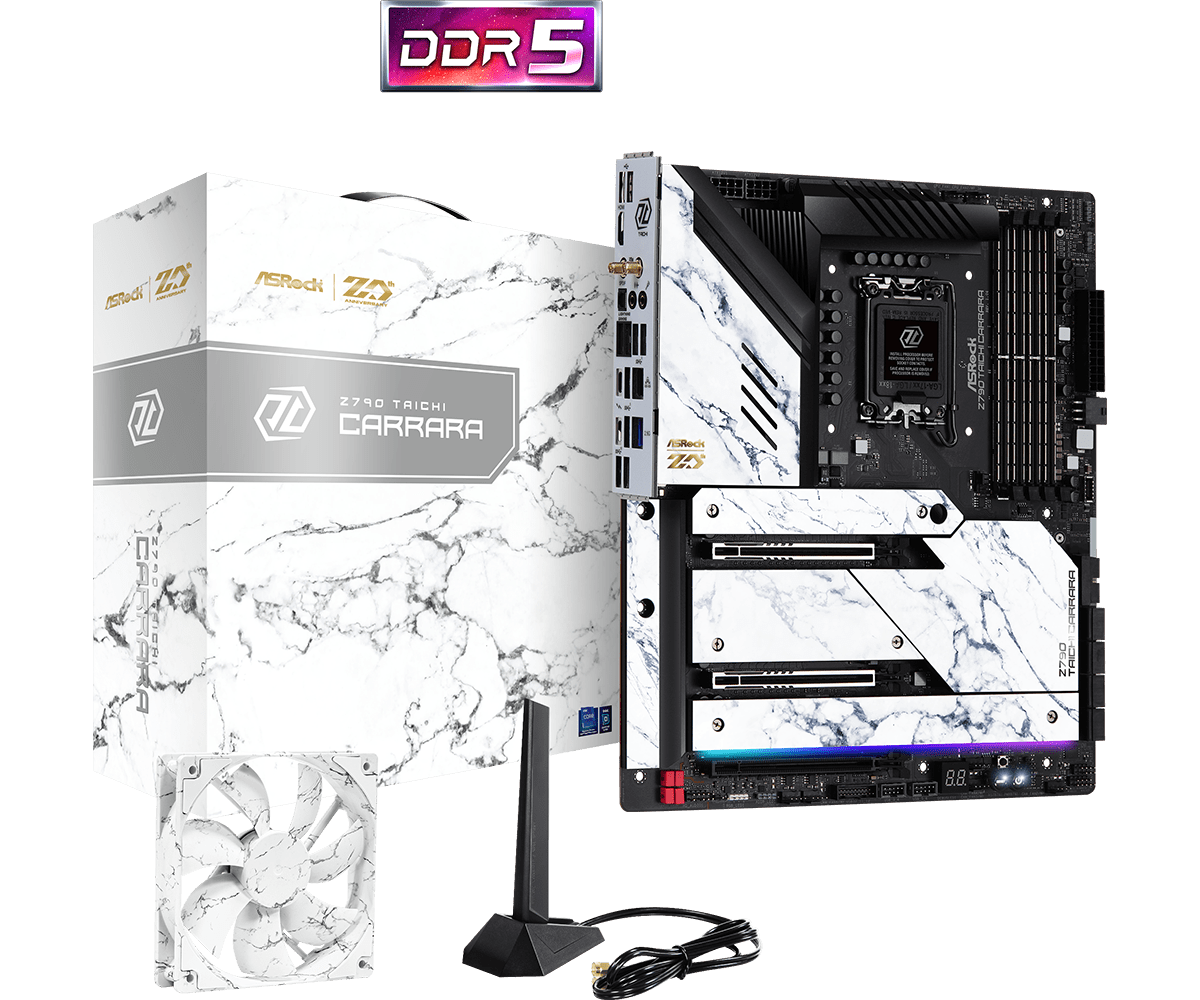

ASRock Z790 Taichi Carrara

Asrock | Bundkort SKU:1903940

Pris:
Tilbudspris4.093 DKK
Lagerstatus

Billigst på PriceRunner

Beskrivelse

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • 16+1+1 Phase Power Design, SPS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
  • Realtek 2.5G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth

Generelt

CPU-Socket
Intel 1700
Chipset
Z790
Form factor
ATX

Hukommelse

Memory Type
DDR5
Kanal understøttet
Dual Channel
Memory frequency (base)
4.800 MHz
Memory frequency (OC)
7.000 MHz
Memory slots
4 pcs.
Max Memory
128 GB

Expansion Slots

PCIe x16
2 pcs.
PCIe x1
1 pcs.
PCIe x4
1 pcs.

Lagerenheder

M.2 slots
5 pcs.
SATA ports
8 pcs.

Kommunikation

WiFi
Ja
WiFi Standard
802.11ax Wi-Fi 6E Module
Bluetooth
Ja

Internal I/O Connectors

TPM
Ja
Thunderbolt
Ja

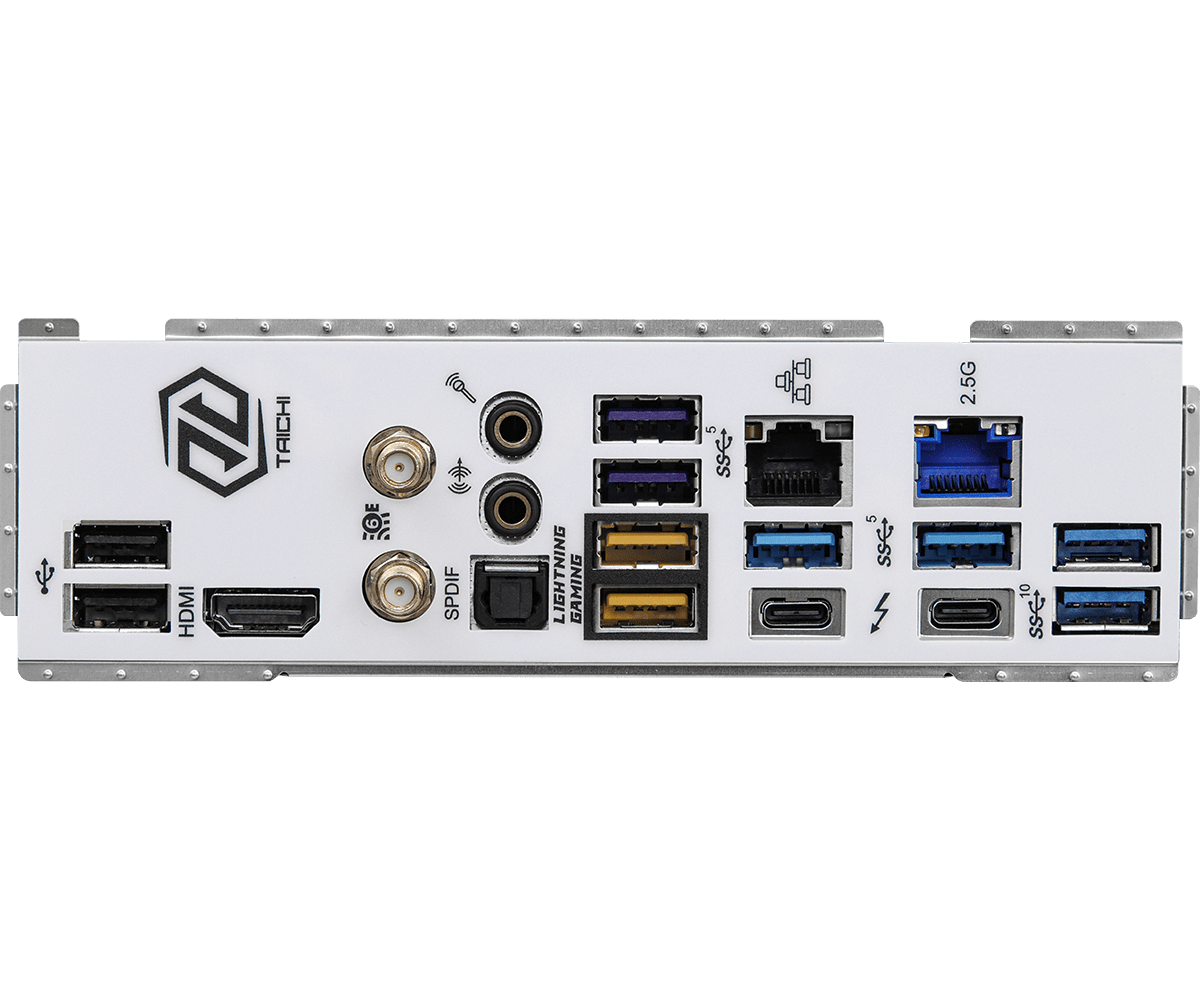

Rear Panel Ports

USB type-A
Ja
USB type-C
Ja
HDMI
Ja
DisplayPort
Ja
AUX ud
Ja
