- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 8 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 2 USB 3.2 Gen2x2 Type-C (1 Front, 1 Rear)
- 4 USB Rear 3.2 Gen2
- 2 USB Front 3.2 Gen1
- Dragon 2.5G LAN, Intel® Gigabit LAN
- 802.11ax (WiFi 6E) + Bluetooth
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- Intel Z690
- Form factor
- Mini-ITX
Hukommelse
- Memory Type
- DDR4-SDRAM
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 3.200 MHz
- Memory frequency (OC)
- 5.000 MHz
- Memory slots
- 2 pcs.
- Max Memory
- 64 GB
Expansion Slots
- PCIe generation
- 5.0
- PCIe x16
- 1 pcs.
Lagerenheder
- M.2 slots
- 2 pcs.
- M.2 support
- 2280
- M.2 generation
- Gen4x4 (64 Gb/s)
- M.2 interface
- M-key
- SATA ports
- 4 pcs.
Kommunikation
- WiFi
- Ja
- WiFi Standard
- 802.11ax Wi-Fi 6E
- Bluetooth
- Ja
- LAN controller
- Dragon RTL8125BG
- LAN hastighed
- 2.5Gb Ethernet
Internal I/O Connectors
- RGB
- Ja
- Fan Connector (4-pin)
- 3 pcs.

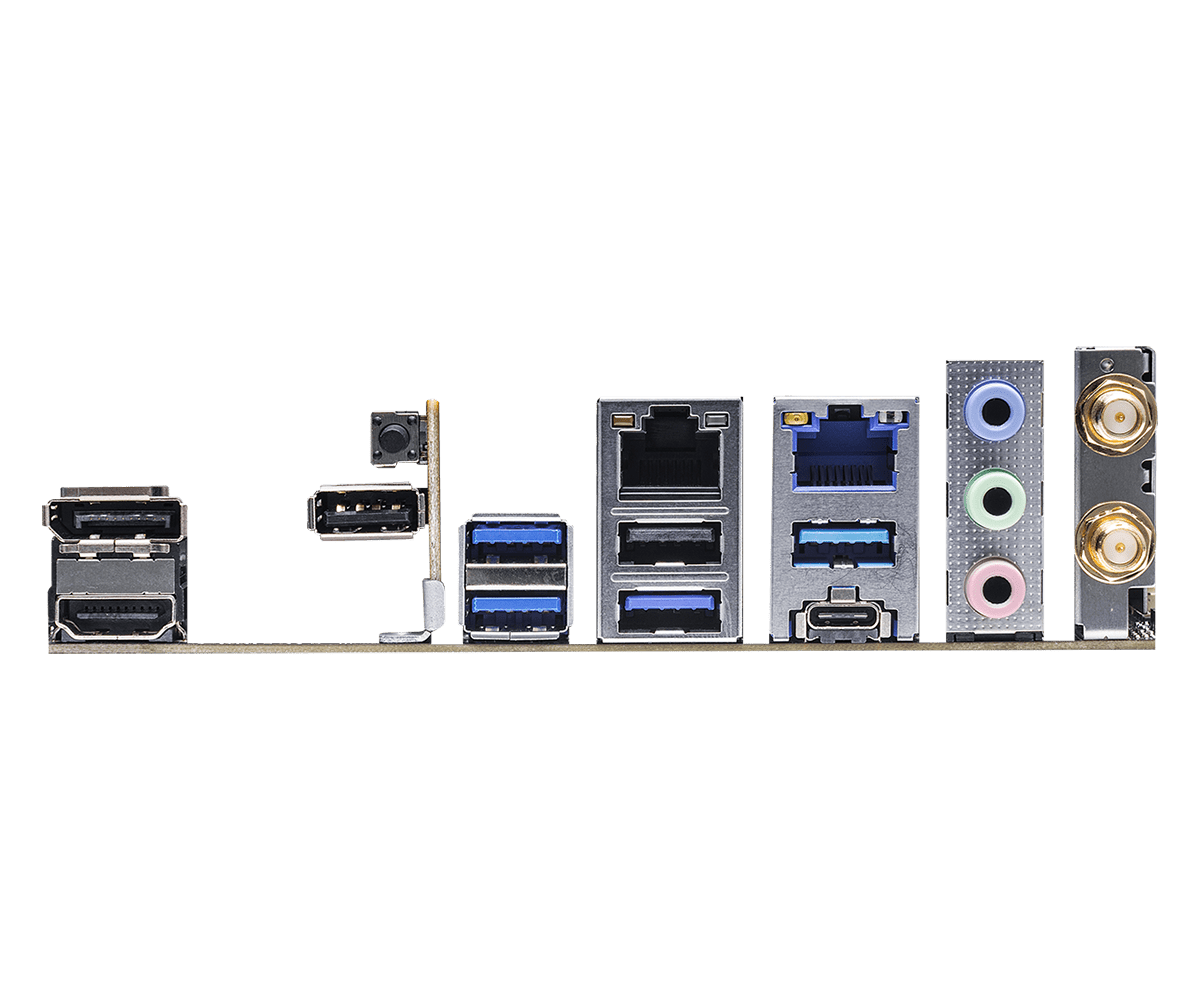

Rear Panel Ports
- USB type-A
- Ja 6x
- USB type-C
- Ja 1x
- HDMI
- Ja 1x
- DisplayPort
- Ja 1x
- AUX ud
- Ja 3x HD audio jacks
- Ethernet
- Ja 2x
Dimensioner og vægt
- Bredde
- 170 mm
- Længde
- 170 mm
