Beskrivelse
| Generelt | |
|---|---|

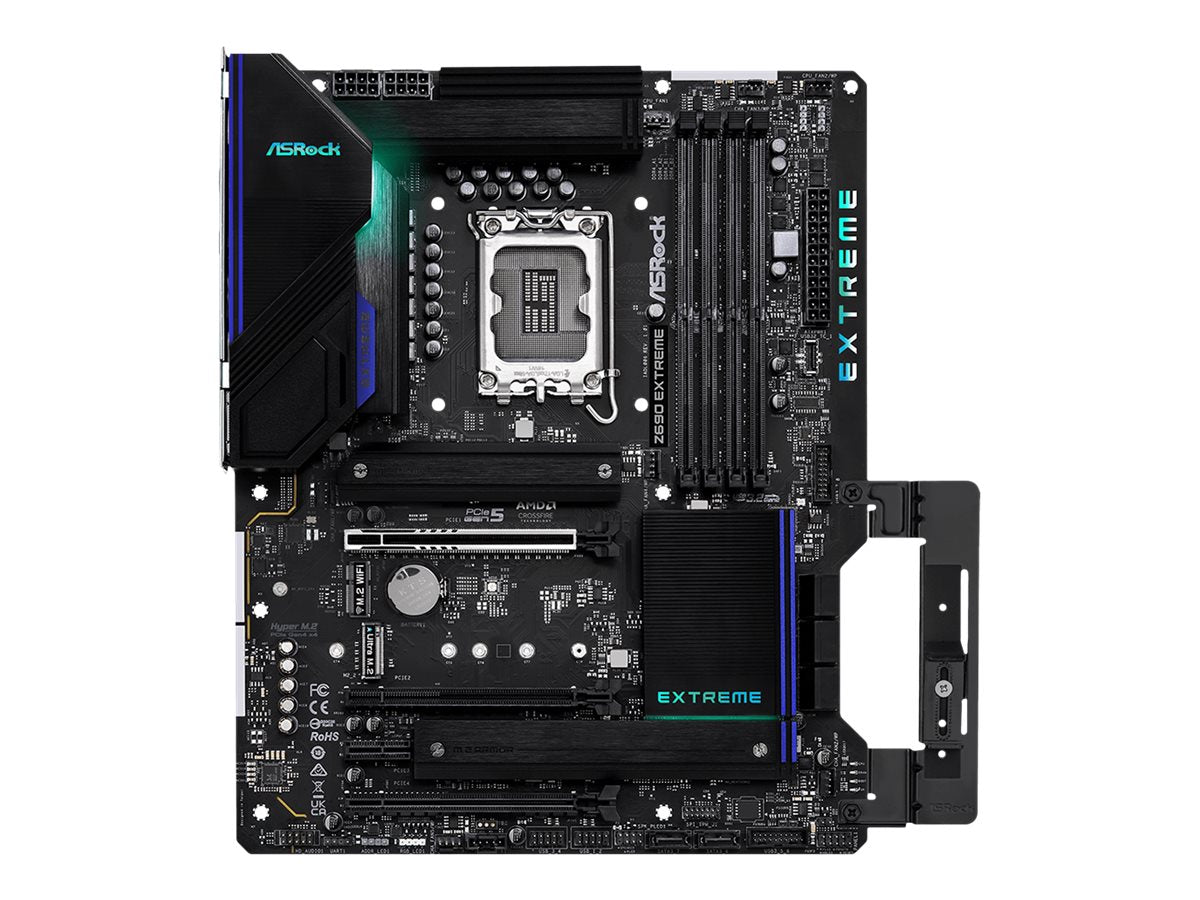

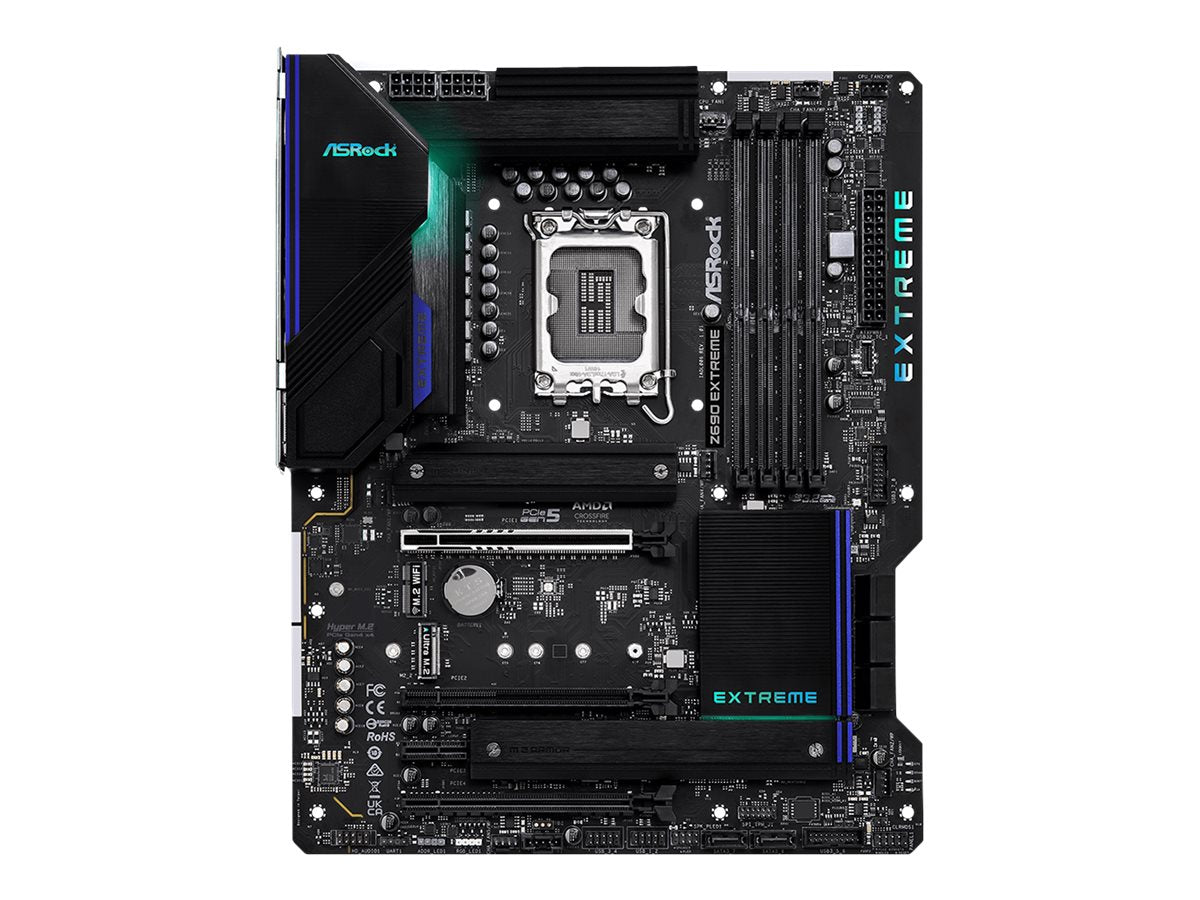

| Produkttype | Bundkort - ATX |
| Chipsættype | Intel Z690 |
| Processor-socket | LGA1700 sokkel |
| Max antal processorer | 1 |
| Kompatible processorer | (understøtter 12. Generation Intel Core) |
| Understøttet RAM | |
| Maks. størrelse | 128 GB |
| Teknologi | DDR4 |
| Bus Clock | 5000 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Registreret eller buffer | Ikke bufferet |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0, understøttede ECC-moduler fungerer i ikke-ECC-tilstand |
| Audio | |
| Type | HD Audio (8-kanaler) |
| Audio codec | Realtek ALC1220 |
| Overensstemmelsesstandarder | High Definition Audio, Premium Blu-ray audiosupport |
| LAN | |
| Netværk controller | Intel I219V / Dragon RTL8125BG |
| Netværks interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 3.0 x16 (x4-modus) 1 x M.2 socket (til trådløst modul) 1 x PCIe 3.0 x1 |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |

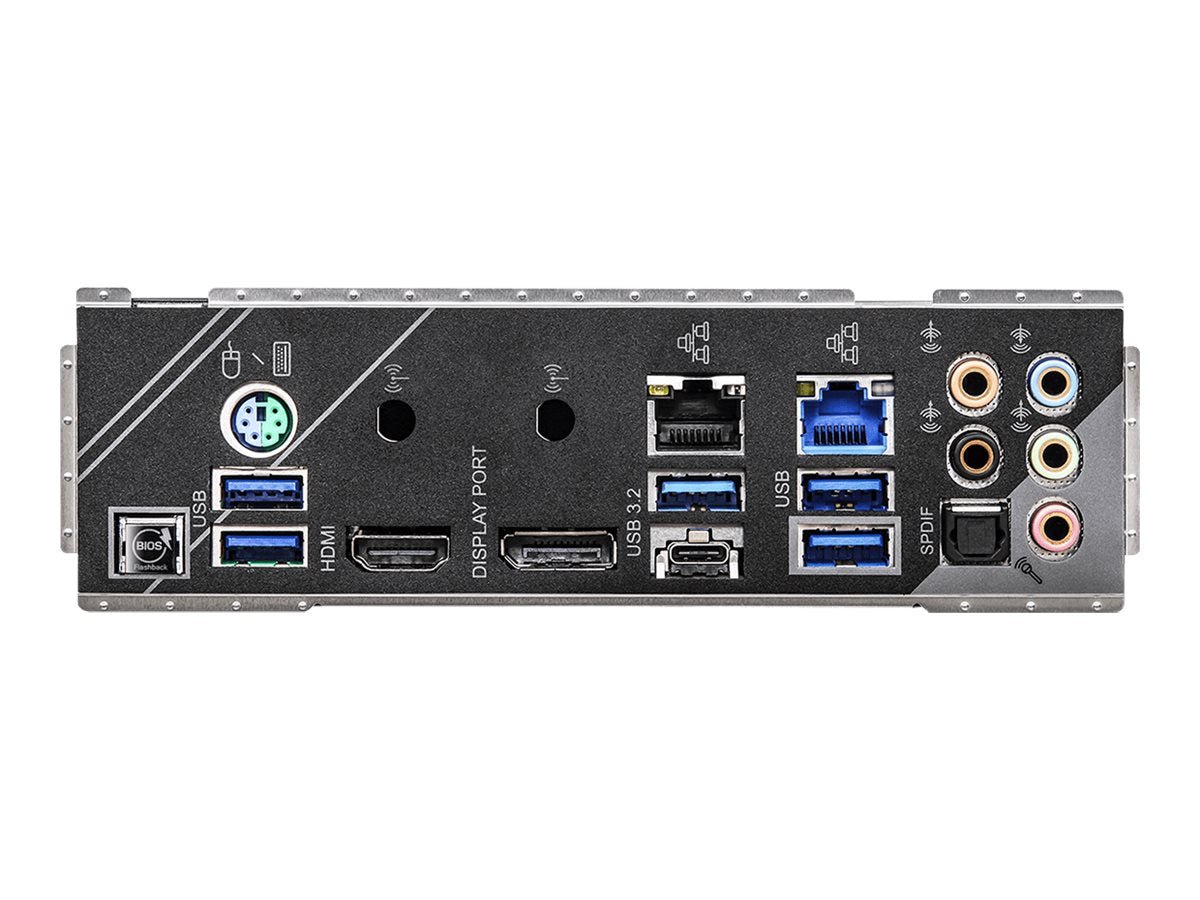

| Interface | 1 x HDMI 1 x DisplayPort 1 x PS/2-tastatur/mus 1 x USB 3.2 Gen 2 1 x USB-C Gen2 4 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x TOSLINK 1 x LAN (Gigabit Ethernet) |
| Interne interfaces | 4 x USB 2.0 - intern stik 1 x USB-C Gen 2x2 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| Egenskaber | |
| BIOS-type (Basic Input/Output System) | AMI |
| BIOS-egenskaber | UEFI BIOS, SMBIOS 2.7 support, ACPI 6,0 support |
| Hardwareovervågning | CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, CPU kerne-spænding |
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber | ASRock Instant Flash, 15µ Gold Contact, AMD CrossFireX-teknologisupport, ASRock Internet Flash, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Easy Driver Installer, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, I/O Armor, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium 60A Power Choke, 13 Phase Power Design, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, Intel Turbo Boost Max Technology 3.0, formet PCB-design, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, Intel Hybrid Technology, 60A Smart Power Stage |
| Diverse | |

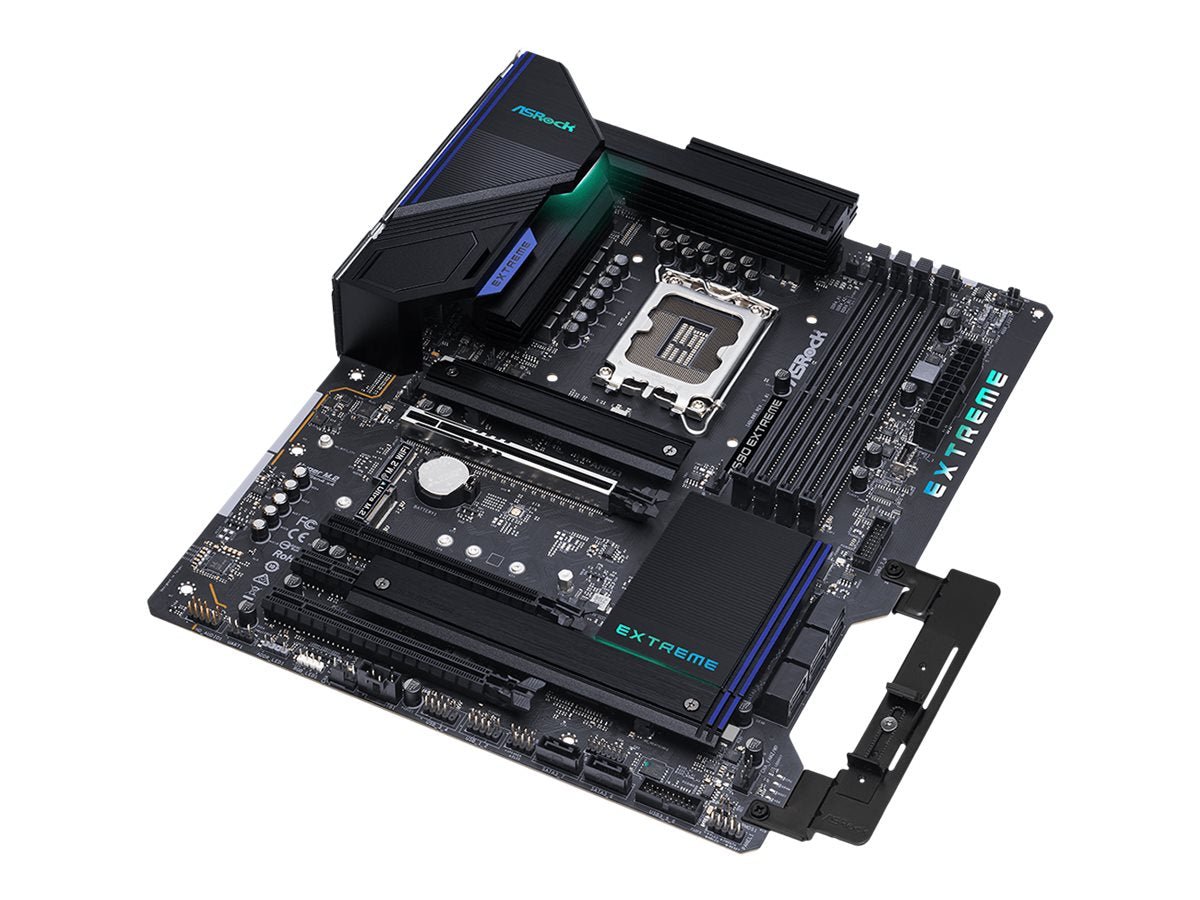

| Udstyr inkluderet | 3 x M.2 skruer, 2 x standoff til M.2 sokkel, grafikkortholder |
| Medfølgende ledninger | 4 x Seriel ATA kabel |
| Med software | Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software |
| Overensstemmelsesstandarder | FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, CEC Tier II |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
