- Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR4 5333MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec,
- Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Beskrivelse
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- B760
- Form factor
- M-ATX
Hukommelse
- Memory Type
- DDR4
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 3.200 MHz
- Memory frequency (OC)
- 5.333 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 128 GB
Expansion Slots
- PCIe x16
- 1 pcs.
- PCIe x1
- 1 pcs.
- PCIe x4
- 1 pcs.
Lagerenheder
- M.2 slots
- 2 pcs.
- SATA ports
- 4 pcs.
Internal I/O Connectors
- TPM
- Ja

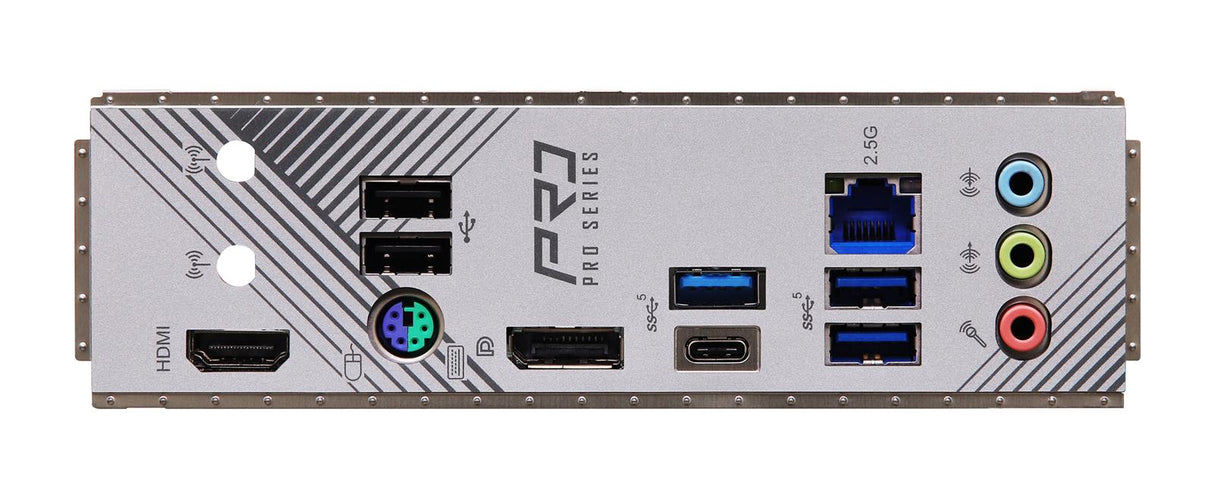

Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
