- Supports 13thGen & 12thGen Intel Core Processors (LGA1700)
- 2+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 6800MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN,
- 802.11ax (WiFi 6E) + Bluetooth
- Supports ASRock Auto Driver Installer
Beskrivelse
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- B760
- Form factor
- M-ATX
Hukommelse
- Memory Type
- DDR5
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 4.800 MHz
- Memory frequency (OC)
- 6.800 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 128 GB
Expansion Slots
- PCIe x16
- 1 pcs.
- PCIe x1
- 1 pcs.
- PCIe x4
- 1 pcs.
Lagerenheder
- M.2 slots
- 3 pcs.
- SATA ports
- 4 pcs.
Kommunikation
- WiFi
- Ja
- Bluetooth
- Ja
Internal I/O Connectors
- TPM
- Ja

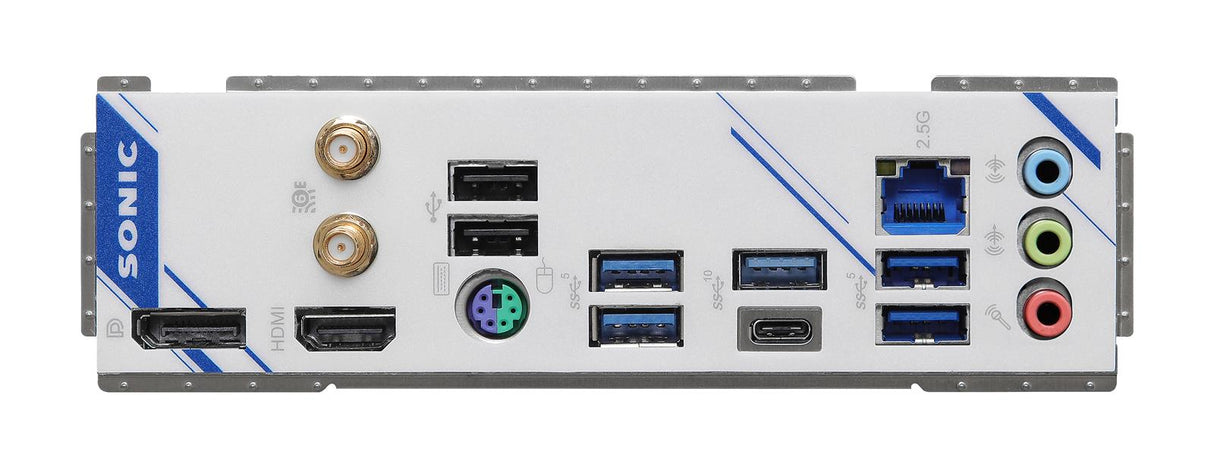

Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
