- Supports 13thGen & 12thGen Intel®CoreTM Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR4 5333MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
- 1 M.2 (PCIe Gen4x2)
- 1 USB 3.2 Gen2 Type-C (Front),
- 1 USB 3.2 Gen1 Type-C (Rear),
- 7 USB 3.2 Gen1 Type-A (5 Rear, 2 Front),
- 4 USB 2.0 (2 Rear, 2 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Beskrivelse
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- B760
- Form factor
- ATX
Hukommelse
- Memory Type
- DDR4
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 3.200 MHz
- Memory frequency (OC)
- 5.333 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 128 GB
Expansion Slots
- PCIe x16
- 1 pcs.
- PCIe x1
- 1 pcs.
- PCIe x4
- 1 pcs.
Lagerenheder
- M.2 slots
- 3 pcs.
- SATA ports
- 4 pcs.
Internal I/O Connectors
- TPM
- Ja
- RGB
- Ja

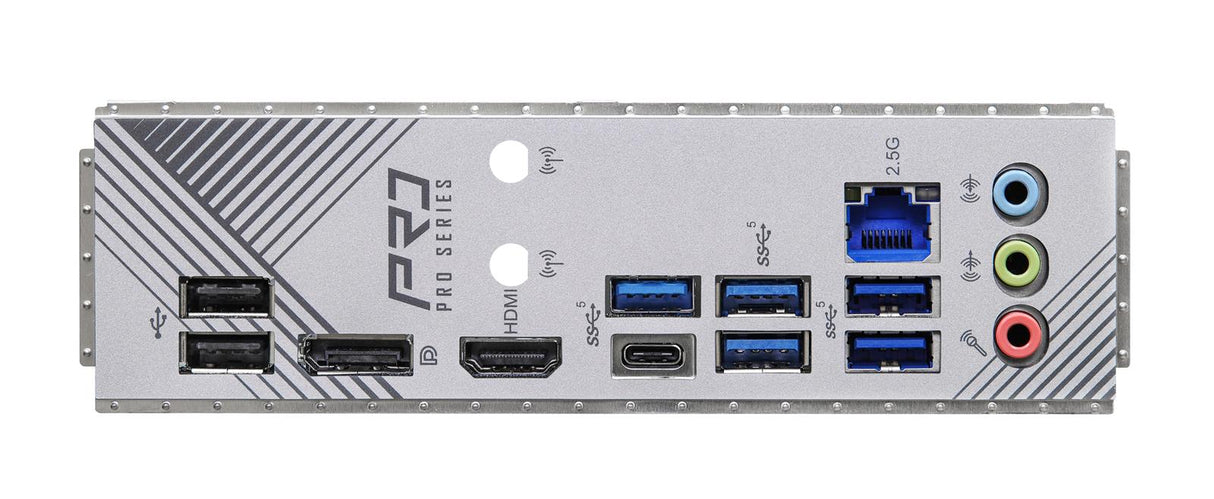

Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
