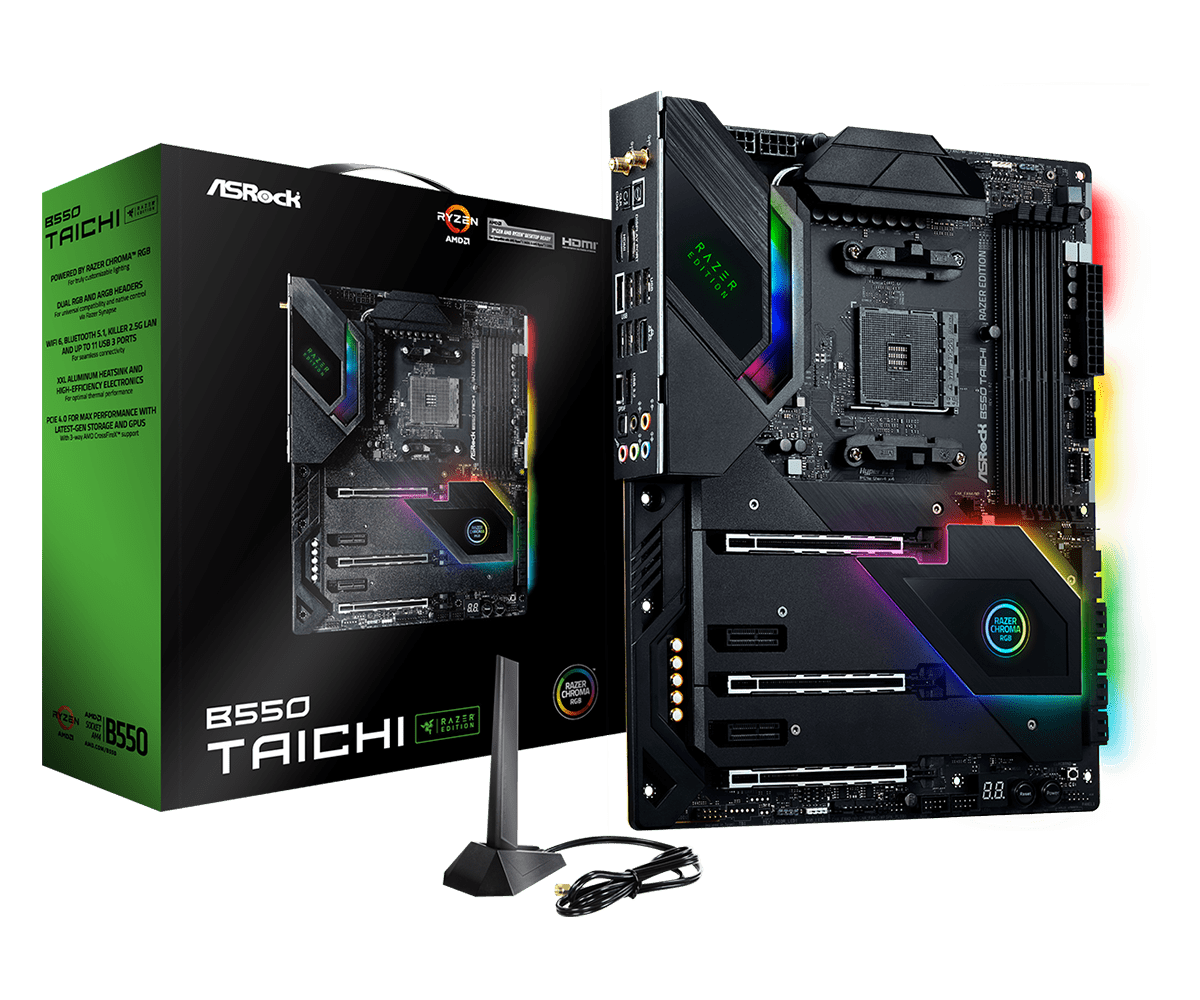

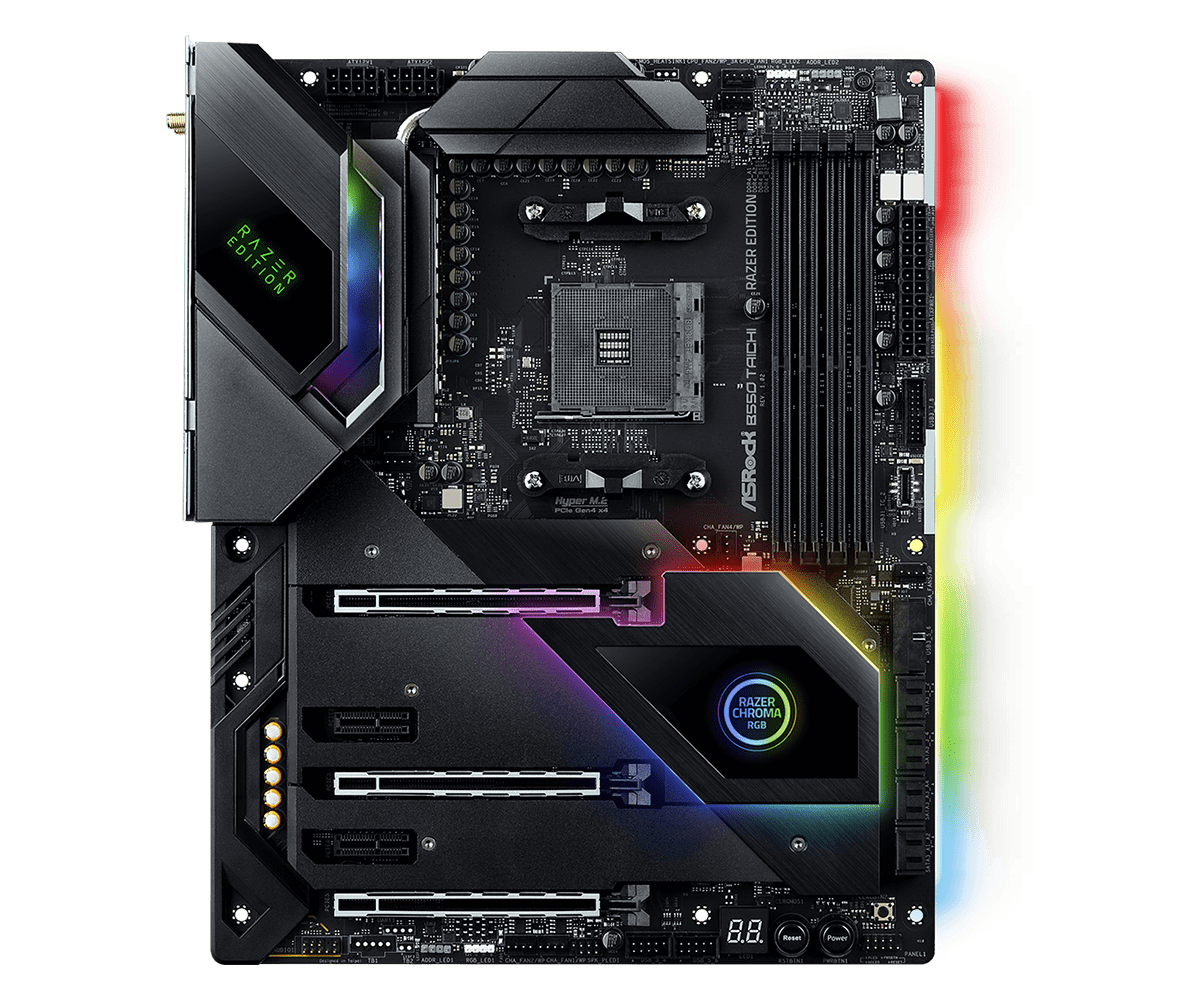

ASRock B550 Taichi ATX AM4 AMD B550

ASRock | Bundkort

Pris:
Tilbudspris2.577 DKK
Lagerstatus

Beskrivelse

Generelt
Produkttype Bundkort - ATX
Chipsættype AMD B550
Processor-socket Socket AM4
Max antal processorer 1
Kompatible processorer Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC, ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, AMD Memory Profile (AMP)
Grafik
Maks. allokeret RAM-størrelse 16 GB
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALC1200
Overensstemmelsesstandarder High Definition Audio, Premium Blu-ray audiosupport
LAN
Netværk controller Killer E3100X / AX1650x
Netværks interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.1
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
3 x PCIe 4.0 x16 (PCIe 4.0 x16, x8/x8, x8/x8/PCIe 3.0 x4 tilstande (med Ryzen serie CPUs Matisse); PCIe 3.0 x16, x8/x8, x8/x8/x4 tilstande (med Ryzen serie CPUs Renoir))
2 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2 Key E-åbning)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
ASMedia ASM1061: SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA
PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x Ultra M.2
Interface 1 x LAN (2.5Gigabit Ethernet)
1 x DisplayPort
1 x HDMI
1 x TOSLINK
2 x USB 2.0
4 x USB 3.2 Gen 1
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
Interne interfaces 4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x USB-C Gen2 - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support
Hardwareovervågning CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber ASRock Instant Flash, 15µ Gold Contact, 16 Phase Power Design, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Killer DoubleShot Pro, Nahimic Audio Enhacer, I/O Armor, ASRock Live Update, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2
Diverse
Udstyr inkluderet ASRock WiFi 2.4/5GHz Antenna, 2 x M.2 skruer, skruetrækker, 2 x standoff til M.2 sokkel
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock Killer LAN, Razer Synapse 3
Overensstemmelsesstandarder Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Bredde 30.5 cm
Dybde 24.4 cm
