Beskrivelse
| Generelt | |
|---|---|

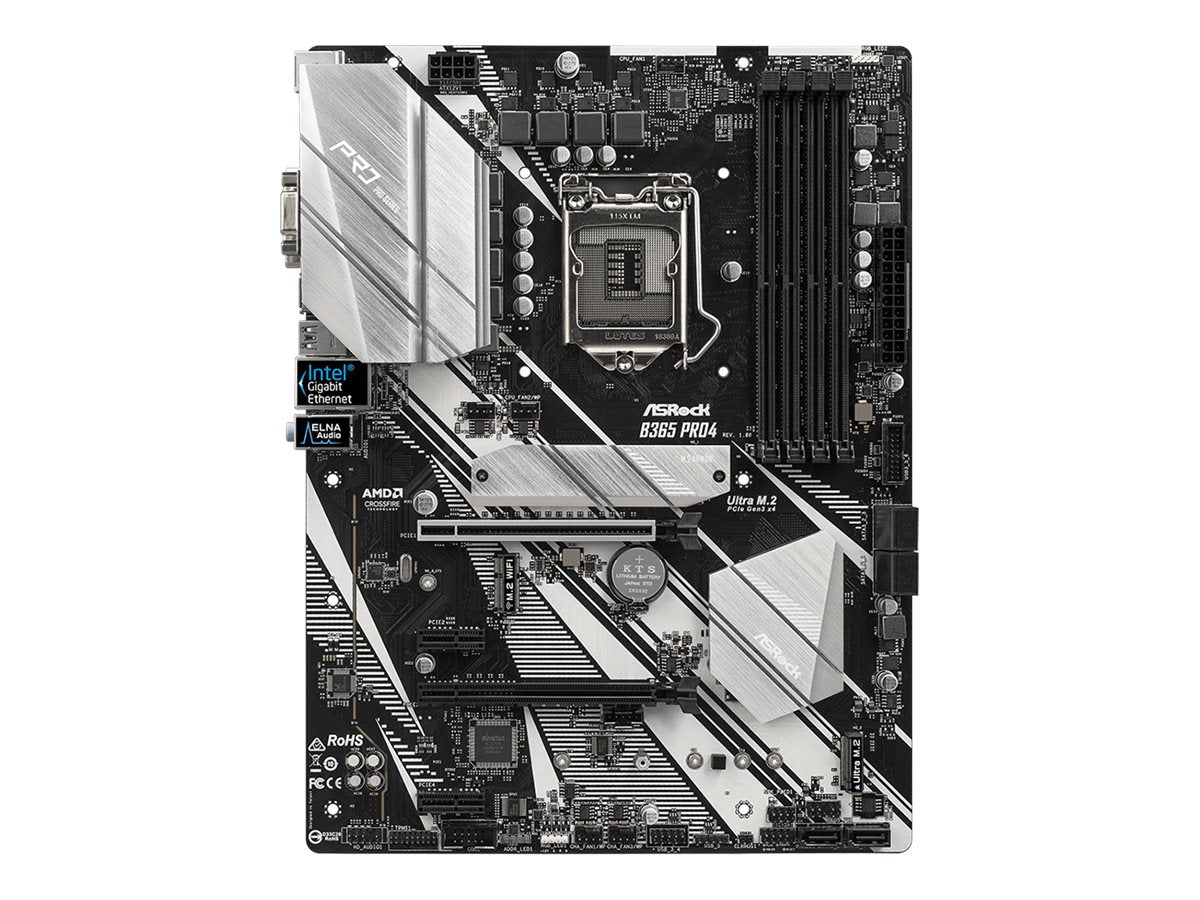

| Produkttype | Bundkort - ATX |
| Chipsættype | Intel B365 |
| Processor-socket | LGA1151 Socket |
| Max antal processorer | 1 |
| Kompatible processorer | (understøtter 9. og 8. Generation Intel Core, Maximum TDP 95 W) |
| Understøttet RAM | |
| Maks. størrelse | 64 GB |
| Teknologi | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Registreret eller buffer | Ikke bufferet |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0, understøttede ECC-moduler fungerer i ikke-ECC-tilstand |
| Audio | |
| Type | HD Audio (8-kanaler) |
| Audio codec | Realtek ALC892 |
| Overensstemmelsesstandarder | High Definition Audio |
| LAN | |
| Netværk controller | Intel I219V |
| Netværks interfaces | Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU 4 x DIMM 288-pins 2 x PCIe 3.0 x16 (dobbelt x16, x4 tilstand; enkeltkort: x16 tilstand) 2 x PCIe 3.0 x1 1 x M.2 socket (Key E) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -stikforbindelser: 1 x Ultra M.2 PCIe 3.0 -stikforbindelser: 1 x Ultra M.2 |
| RAID-egenskaber | Intel Rapid Storage Technology |
| Interface | 1 x PS/2-tastatur/mus 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 5 x USB 3.1 Gen 1 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x USB-C Gen1 |
| Interne interfaces | 3 x USB 2.0 - intern stik 2 x USB 3.1 Gen 1 - intern stik 1 x seriel - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| Egenskaber | |
| BIOS-type (Basic Input/Output System) | AMI |
| BIOS-egenskaber | Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6,0 support |
| Hardwareovervågning | CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding |
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber | 8 Phase Power Design, ASRock Instant Flash, HDCP kompatibel, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 50A Power Choke, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots |
| Diverse | |
| Udstyr inkluderet | I/O- bagvæg, 3 x M.2 skruer |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Med software | Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB |
| Overensstemmelsesstandarder | FCC, EuP Ready, ErP Ready |
| Bredde | 30.5 cm |
| Dybde | 22.9 cm |
